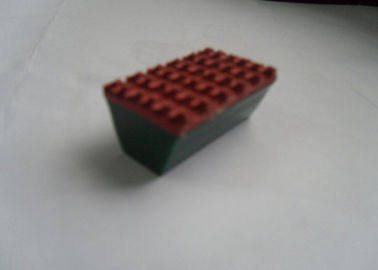

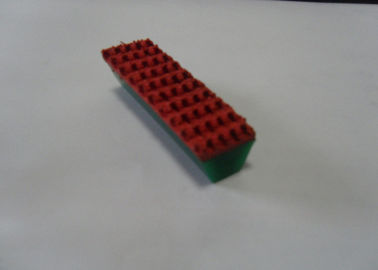

Corrugated belt with Red Rubber on Top super grip belt for Conveying industrial line
Super grip Belt Application :
· Widely used in conveying slippery environments,
· Up steep inclines conveying industrial .
Super grip Belt Feature :
· Profile shape: Vee
· Profile size: A/13, B/17, C/22
· Reinforcement: None
· Color: Green, Red
· Compliancy: RoHS
· Durometer: 80A, 90A
· Material: Polyurethane, Rubber Corrugated Top Surface
· Special Feature: PU Vee belt with Rubber Corrugated Top Surface
· Package Length: 30meter /roll
· Easily welded endless vee belt .
|
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
reinforced |
arabesquitic |
|
A |
13 |
8 |
3.5 |
30 |
· |
· |
|
B |
17 |
11 |
3.5 |
30 |
· |
· |
|
C |
22 |
14 |
3.5 |
30 |
· |
· |
|
D |
32 |
19 |
3.5 |
30 |
· |
· |
|
M |
8 |
4 |
|
50 |
|
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |
Products introduction:
Super grip belt ,Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface. Perfect for conveying in the
most abrasive environments such as moving concrete blocks, bricks, and tiles of all types.
