| Hardness: | 85 shore A ~90 shore A | length: | 30 meter /roll |
|---|---|---|---|
| type: | Super grip belt | color: | Red V belt green top PVC belt |
| Material: | Polyurethane | surface: | rough |
| برجسته: | ,,pu extruded belt |
||

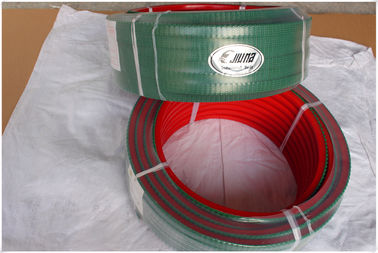

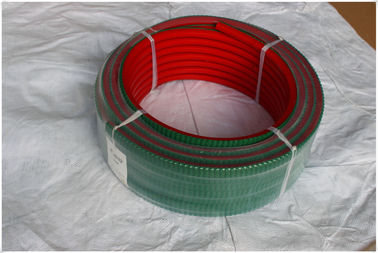

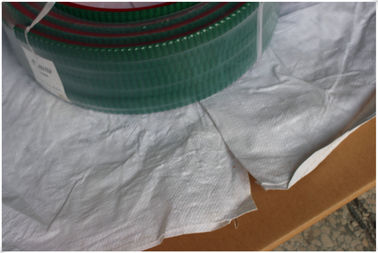

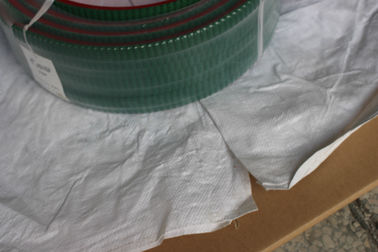

Conveyor PU V Belt With Super Grip / Transmission Polyurethane V Belt Top Green PVC
Wuxi jiunai polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production line, the introduction of international advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity.
Super grip Belt Feature :
· Profile shape: Vee
· Profile size: A/13, B/17, C/22
· Reinforcement: None
· Color: Green, Red
· Compliancy: RoHS
· Durometer: 80A, 90A
· Material: Polyurethane, PVC Top Surface
· Special Feature: PVC Grip Top Surface
· Package Length: 30meter /roll
· Easily welded endless vee belt .
Vee-Belt Application :
· Widely used in conveying slippery environments,
· Up steep inclines conveying industrial .
|
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
reinforced |
arabesquitic |
|
A |
13 |
8 |
3.5 |
30 |
· |
· |
|
B |
17 |
11 |
3.5 |
30 |
· |
· |
|
C |
22 |
14 |
3.5 |
30 |
· |
· |
|
D |
32 |
19 |
3.5 |
30 |
· |
· |
|
M |
8 |
4 |
|
50 |
|
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |
Products introductions :
Super grip belt are ideally suited for applications where conveying in slippery environments,
up steep inclines, or moving easily damaged products is more important than abrasion
resistance. Conveying applications that require the elasticity of an unreinforced V-belt combined
with a super grip surface. PU Vee Super Grip with top PVC surface is soft and tacky enough
that it won’t damage your precious cargo while giving you the grip that you need. The ultra-high
grip material is produced with an extremely compliant pattern
