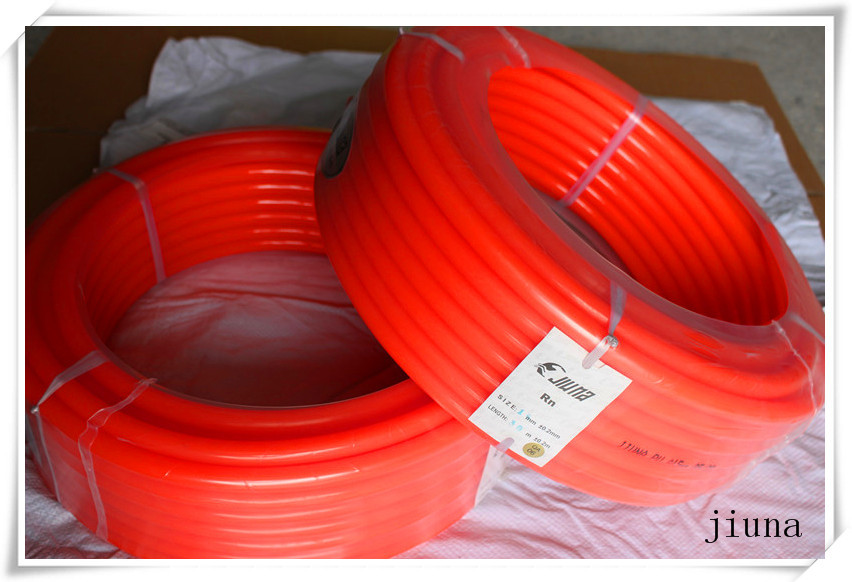

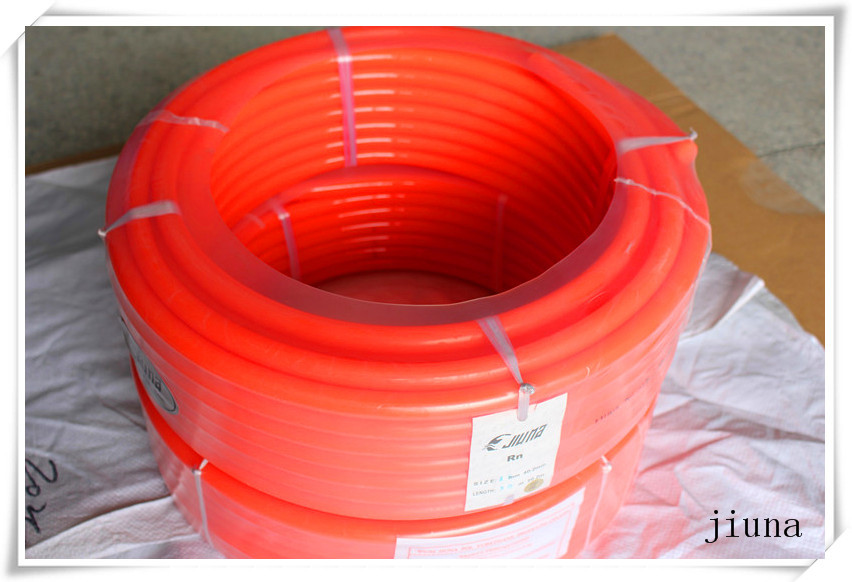

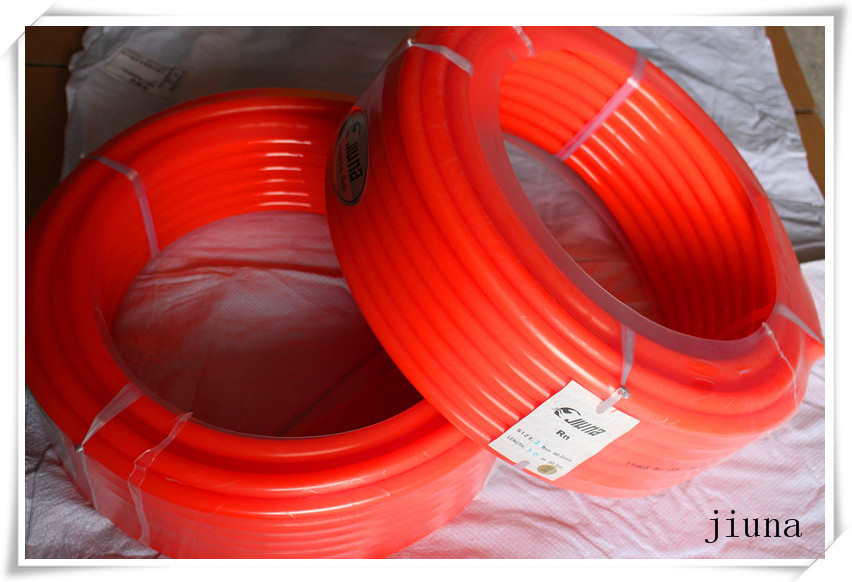

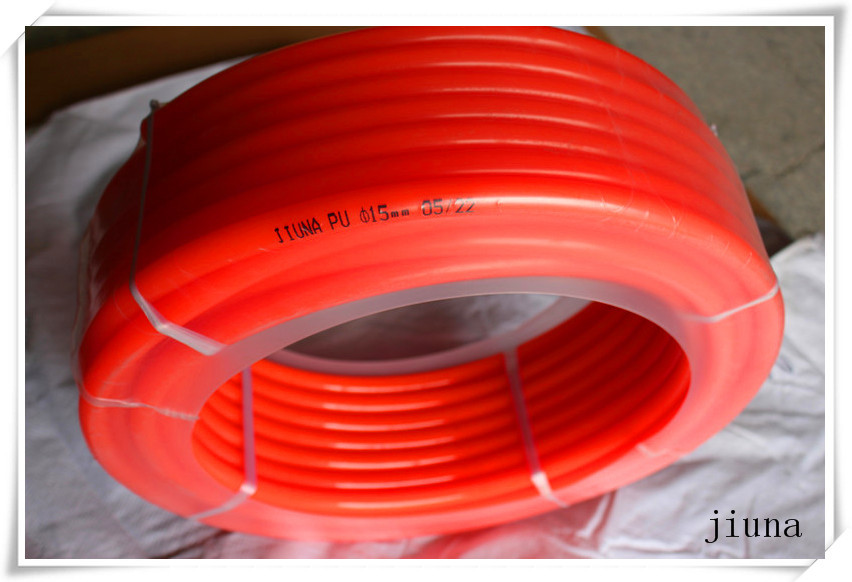

Smooth round rubber belts / High tensile polyurethane cord 90A

Smooth round rubber belts / High tensile polyurethane cord 90A
Smooth round rubber belts / High tensile polyurethane cord 90A Smooth round rubber belts / High tensile polyurethane cord 90A Smooth round rubber belts / High tensile polyurethane cord 90A Smooth round rubber belts / High tensile polyurethane cord 90A

تصویر بزرگ :  Smooth round rubber belts / High tensile polyurethane cord 90A

جزئیات محصول:
Place of Origin: Wu xi city of China
نام تجاری: jiuna
گواهی: ROHS
Model Number: Diameter2mm-20mm
پرداخت:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
توضیحات محصول جزئیات
رنگ: رنگ نارنجی سختی: 90A
طول: 400 متر در رول استفاده: زنجیره انتقال
نوع: کمربند گرد خشن PU سطح: صاف
مواد: PU
برجسته:

کمربند اکسترود شده pu

,

کمربند گرد سبز

,

کمربند گرد خشن PU 90A

Smooth round rubber belts / High tensile polyurethane cord 90A



Smooth Surface Urethane Round Belting Rohs Approved , Low Compression

Widely used in textiy

  printing and packing machine,food & beverage processing, wood processing  ,  paper processing electronic post service tobacco transmission line
 Wall floor tile conveying industrial line

Ceramic industry line or polishing line

We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon

Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees
  • The types of TPU V-Belt:

Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,

heptagonal belt, supper-grip belt, T belt, perallel belt.

Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile   rate

Hardness

Length of rolled

DIA(mm)

 In

mm

    %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Smooth round rubber belts / High tensile polyurethane cord 90A 0

Smooth round rubber belts / High tensile polyurethane cord 90A 1

Service commitment:

“ Quality for keeping going ,Credit to win the world”
