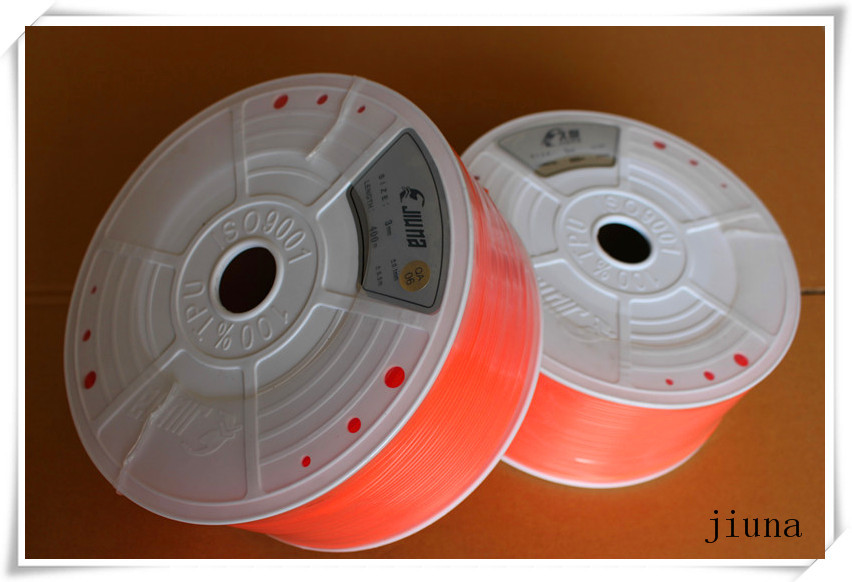

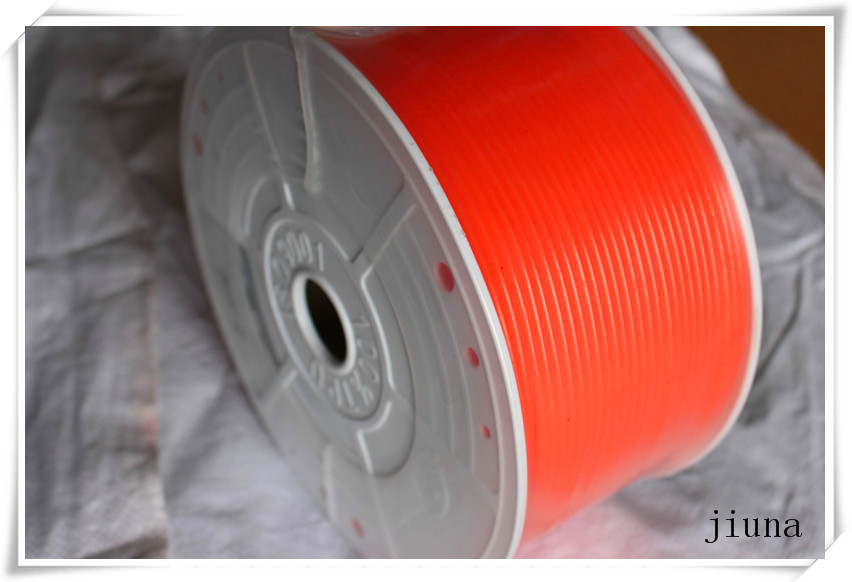

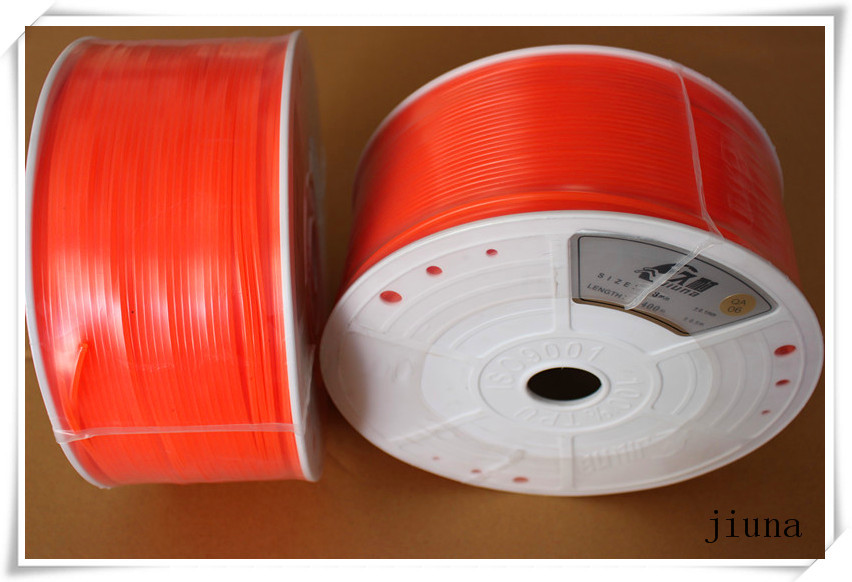

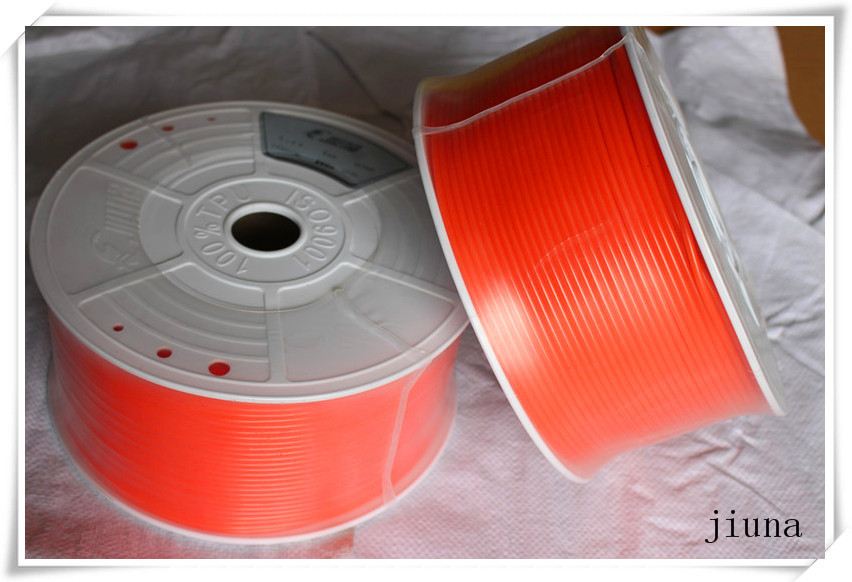

Abrasion Resistant polyurethane belt Textile And Glass 400 M / Roll
| Place of Origin | china |
|---|---|
| نام تجاری | jiuna |
| گواهی | ROHS |
| Model Number | Diameter2mm-20mm |
| Minimum Order Quantity | 10 rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | L/C, T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 100,000,00 as per month |
جزئیات محصول
| رنگ | رنگ نارنجی | سختی | 90A |
|---|---|---|---|
| طول | 400 متر در رول | استفاده | زنجیره انتقال |
| نوع | کمربند گرد خشن PU | سطح | صاف |
| مواد | PU | ||
| برجسته کردن | کمربند گرد pu,کمربند گرد سبز,کمربند گرد پلی اورتان 400 متر / رول |
||
توضیحات محصول
Abrasion Resistant polyurethane belt Textile And Glass 400 M / Roll
Smooth Surface Urethane Round Belting Rohs Approved , Low Compression
Widely used in textiy
printing and packing machine,food & beverage processing, wood processing , paper processing electronic post service tobacco transmission line
Wall floor tile conveying industrial line
Ceramic industry line or polishing line
We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon
Color: Orange, Red, Dark Green, Ivory, Natural .
- Shore Hardness: Round belt - 87°A ± 2 .
- Rough surface: Normal Rough / More Rough .
- Steel, Glass & Aramid Reinforcement on request.
- Easily jointed with BCTech's Welding Kits
- Features:
- High tensile and tear strength
- High abrasion resistance
- Resistant to oil, grease, dust, moisture & most chemicals
- Temperature Range: -35 ~ 85 Degrees
The types of TPU V-Belt:
Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,
heptagonal belt, supper-grip belt, T belt, perallel belt.
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.
|
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
|
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
Service commitment:
“ Quality for keeping going ,Credit to win the world”
