Wuxi Jiunai Polyurethane Products Co., Ltd
خانه محصولاتکمربند دور پلی اورتان

High strength PU belt transmission , Good Resistance To Fuel

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

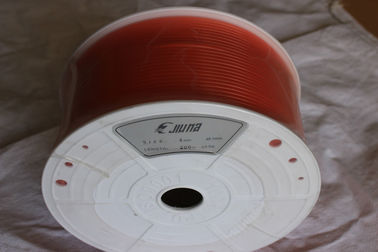

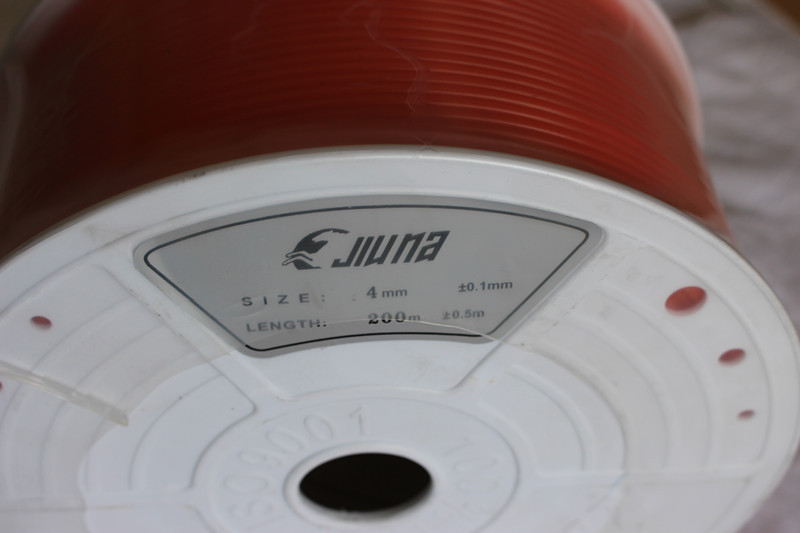

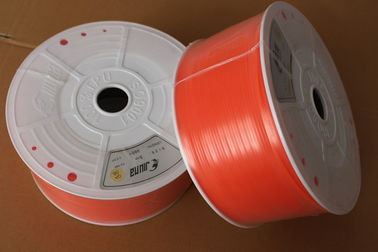

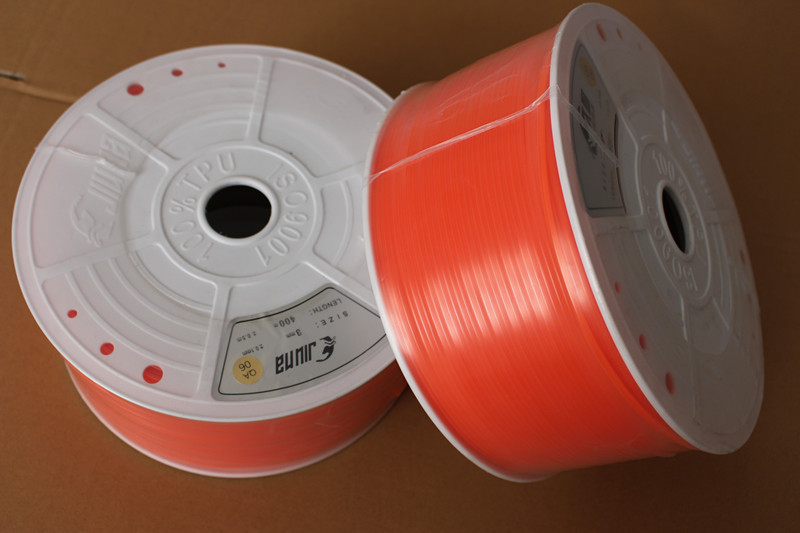

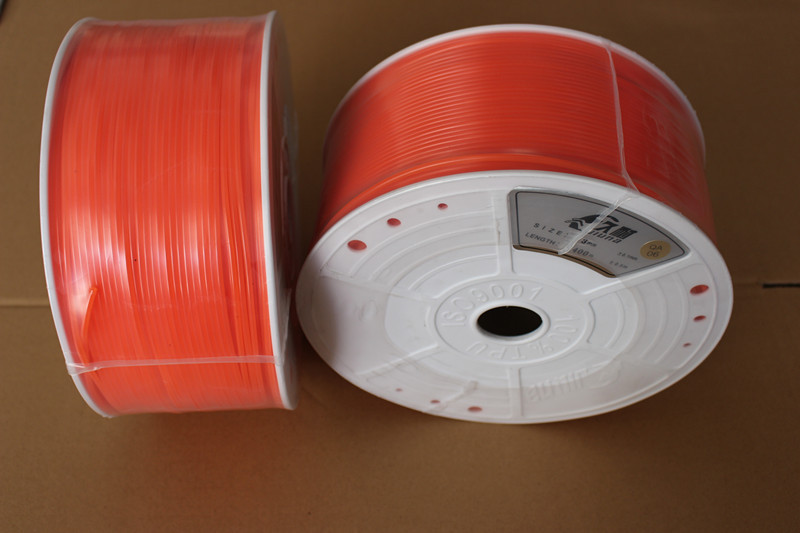

High strength PU belt transmission , Good Resistance To Fuel

High strength PU belt transmission , Good Resistance To Fuel
High strength PU belt transmission , Good Resistance To Fuel High strength PU belt transmission , Good Resistance To Fuel High strength PU belt transmission , Good Resistance To Fuel High strength PU belt transmission , Good Resistance To Fuel

تصویر بزرگ :  High strength PU belt transmission , Good Resistance To Fuel

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Diameter2mm-20mm
پرداخت:
Minimum Order Quantity: 1000 meters
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
توضیحات محصول جزئیات
مواد: PU نوع: کمربند گرد PU
رنگ: نارنجی اعمال دما: -35 ℃~100 ℃
سطح: صاف سختی: 85A-90A
طول: 30 متر / رول تقویت شده: سفارشی شده
pre-tensioning: 1.5%-3%
برجسته:

کمربند گرد pu

,

کمربند گرد سبز

,

کمربند گرد PU با استحکام بالا

High strength PU belt transmission , Good Resistance To Fuel

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.

Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and

other industries, especially in the ceramic industry, widely used in the facilities line the glaze,

 polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

High strength PU belt transmission , Good Resistance To Fuel 0High strength PU belt transmission , Good Resistance To Fuel 1
