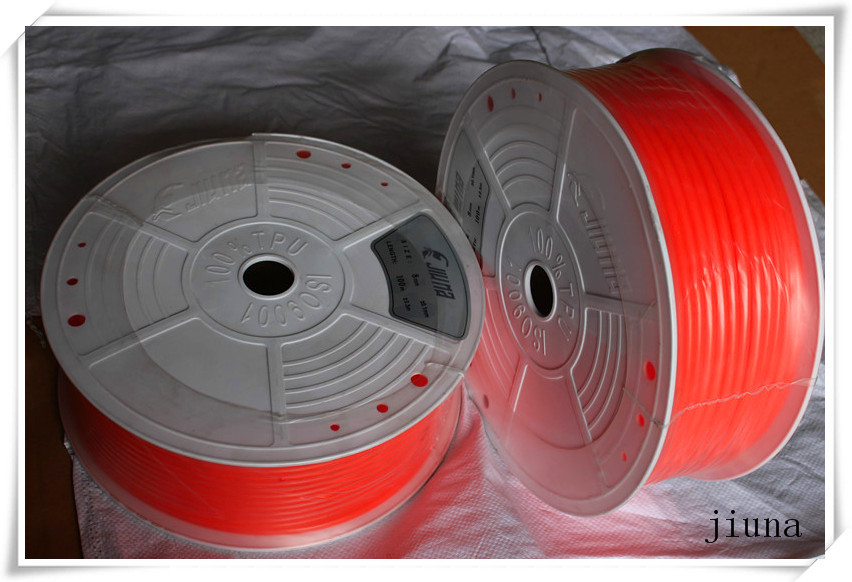

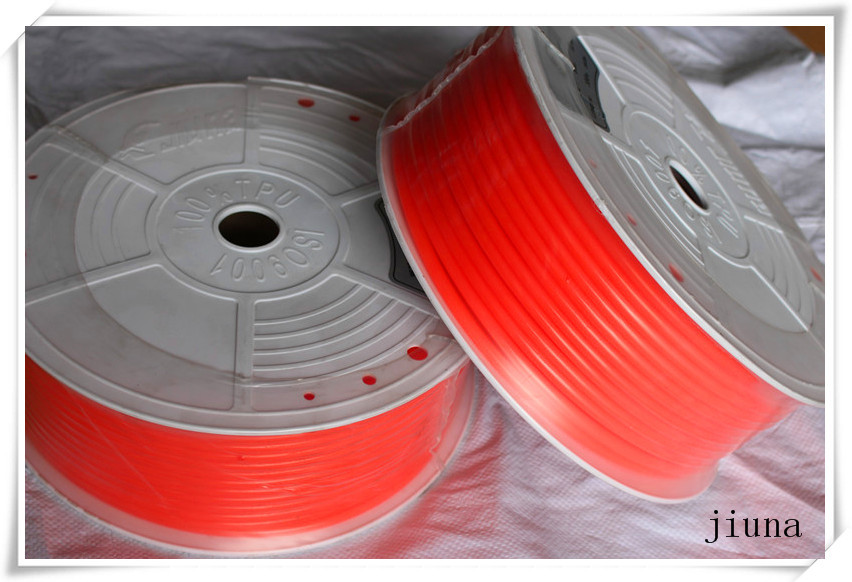

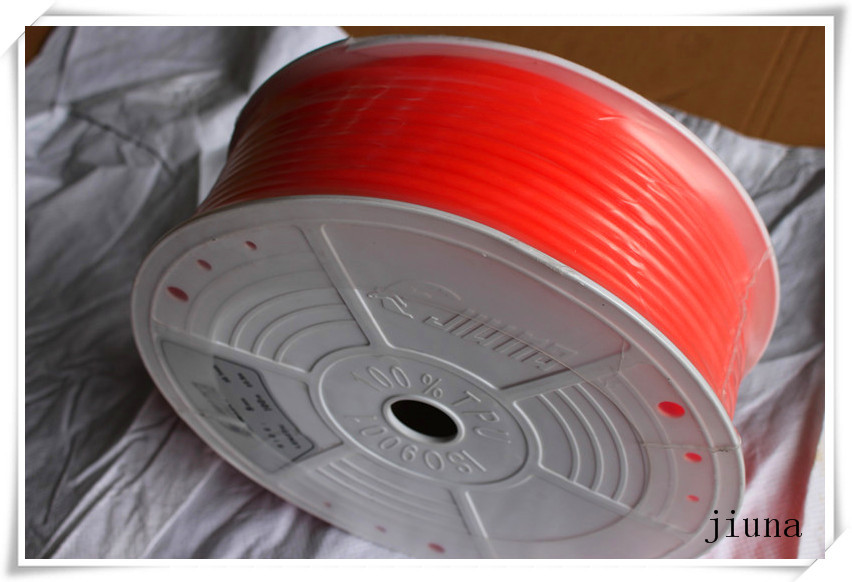

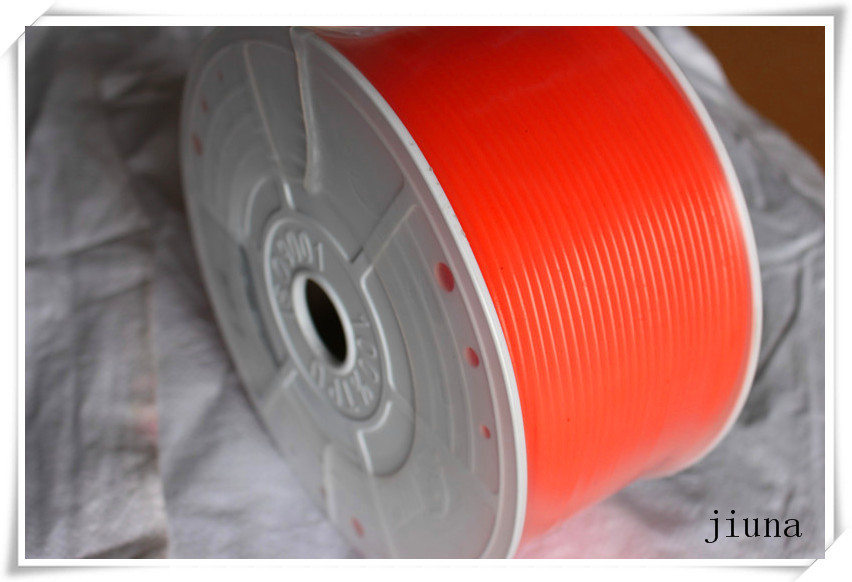

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
Place of Origin china
نام تجاری jiuna
گواهی ROHS
Model Number diameter 3mm
Minimum Order Quantity 10 rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability 100,000,00 as per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
رنگ نارنجی سختی 90A
طول 400 متر در رول استفاده زنجیره انتقال
نوع کمربند گرد خشن PU سطح صاف
برجسته کردن

تسمه اکسترود شده pu

,

کمربند گرد سبز

,

کمربندهای پلی اورتان مقاوم در برابر سایش
پیام بگذارید
توضیحات محصول



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll





Smooth Surface Urethane Round Belting Rohs Approved , Low Compression



Widely used in textiy

  printing and packing machine,food & beverage processing, wood processing  ,  paper processing electronic post service tobacco transmission line
 Wall floor tile conveying industrial line

Ceramic industry line or polishing line



We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon

Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees

The types of TPU V-Belt:

Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,

heptagonal belt, supper-grip belt, T belt, perallel belt.



Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20 1.5-3% 0.3 0.7 90A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85A 200
15mm 4.72 120 1.5-3% 17.7 39.0 85A 30
18mm 5.71 145 1.5-3% 25.4 56.0 85A 30
20mm 6.30 160 1.5-3% 31.3 69.0 85A 30



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 1Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 3



Service commitment:



“ Quality for keeping going ,Credit to win the world”
