جزئیات محصول:
پرداخت:
|
| بازارهای صادراتی: | جهانی | مواد: | پلی اورتان |
|---|---|---|---|
| رنگ: | قهوه ای، سفید، قرمز، سبز، آبی | طول / رول: | 4 متر |
| سختی: | 55 shore A~95 shore A | سرویس OEM: | خوش آمدی |
| برجسته: | اسکرین پرینت اسکرین,اسکرین گیر چاپ صفحه,اسکرو 4 متری PU |
||

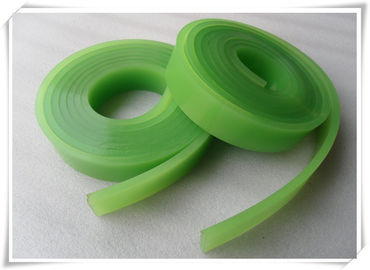

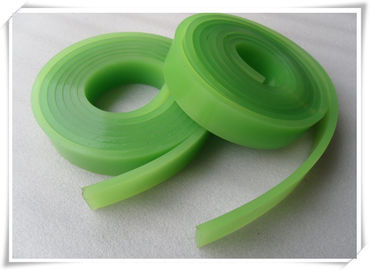

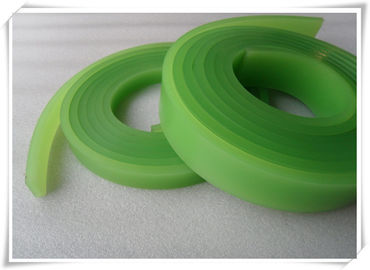

PU Squeegee:
50*9mm ,55*9mm,45*9mm,50*7mm,45*7mm,40*7mm,55*5mm,50*5mm,45*5mm,40*5mm,
38*8mm,35*5mm,25*5mm(Customized)
Shore:55shore,60shore,65shore,70shore,75shore,80shore,85shore,90shore
Shape:Flat shape,V shape.(Customized)
1. Normal Squeegees Mainly used in the glazing line of ceramic, wood and other Industries with lower polar solvents.
2. Anti-Solvent Squeegees is used in PCB manufacturing enterprises and printing industry.
3. Hardness: 45A -90A
4. MDI Super Anti-solvent, easy to grind, suitable for printing circuit board (France Fimor quality)
5. NDI super wear-resistant, tear-resistant, super solvent, suitable plastic silk screen (excellent quality, brown color)
6. Flat squeegees, squeegees with edge, all of type could be produced according to customers.
7. PU material, high abrasion resistance, high aging resistance, high anti-solvent, long life span, Shore hardness: 45A -90A.
8. PU conveyor belt scrapers used to scrape coal chemical adhesion of ash and powder materials such as coal transportation, fertilizer delivery, and gravel delivery and so on.
9. PU scraper for scraping cloth products, shaving products, such as the adsorption of water
Normal Squeegees is mainly used in the glazing line, wood and industries with little polar solvent. The other type is anti-solvent squeegees, these products used in the production of circuit boards enterprises and printing industry
Application :
Our screen printing squeggee is widely used in the below industry.
1.Textile screen printing machine
2.Ceramic and sanitaryware industry machine
3.Electronic machine,
4.Window film industry, scraper film
5.scraper automible,Car, Truck.
6.UV ink industry
7.Glass industry
Hardness selection:
|
Low hardness |
55,60,65 SHORE A |
red,natual color |
|
Medium hardness |
70,75 SHORE A |
Green,natual color |
|
High hardness |
80,85 SHORE A |
Blue,natual color |
|
Super hardness |
90,95 SHORE A |
White color |
|
Triple Layer: Medium hardness |
75/90/75 SHORE A |
Green/white/green color |
|
Triple Layer: Low hardness |
65/90/65 SHORE A |
Red/white/red color |
|
Other hardness and colors are available on request |
||
