Low compression Polyurethane Round Belt / Smooth Round Drive Belts

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

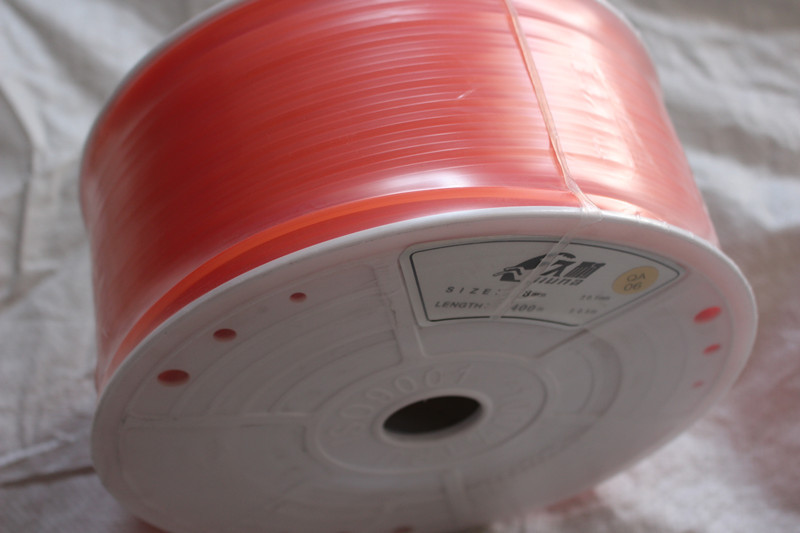

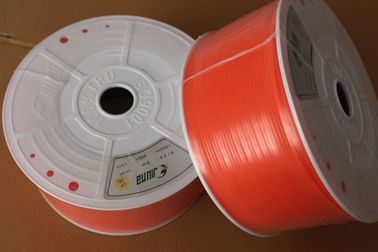

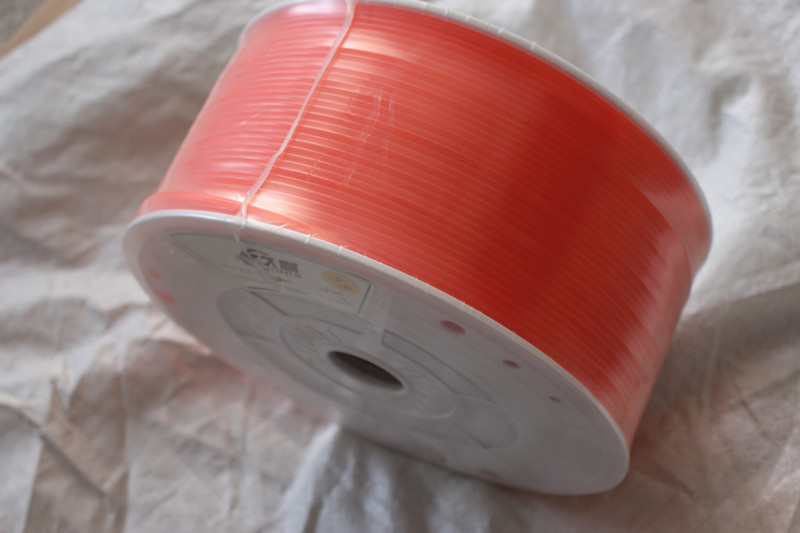

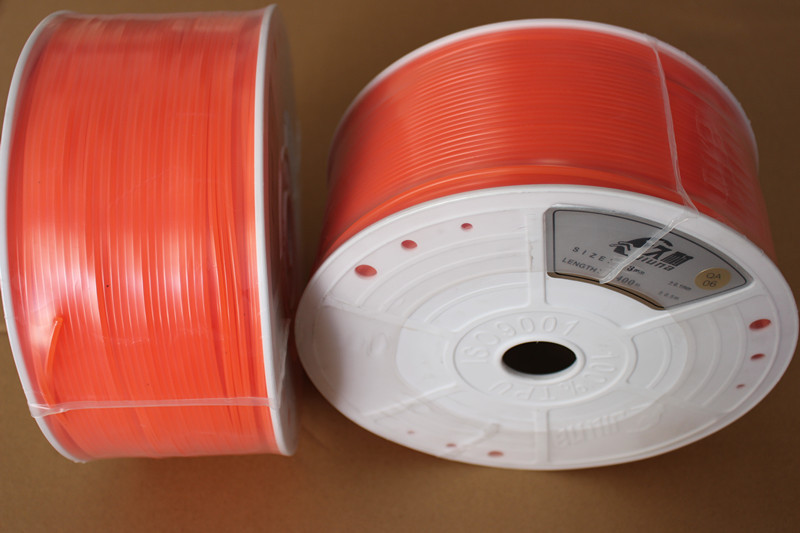

Low compression Polyurethane Round Belt / Smooth Round Drive Belts

Low compression Polyurethane Round Belt / Smooth Round Drive Belts
Low compression Polyurethane Round Belt / Smooth Round Drive Belts Low compression Polyurethane Round Belt / Smooth Round Drive Belts Low compression Polyurethane Round Belt / Smooth Round Drive Belts Low compression Polyurethane Round Belt / Smooth Round Drive Belts

تصویر بزرگ :  Low compression Polyurethane Round Belt / Smooth Round Drive Belts

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Diameter 2~20 mm
پرداخت:
Minimum Order Quantity: 1000 meters
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
توضیحات محصول جزئیات
material: PU hardness: 85A-90A
surface: smooth color: orange
Tensile Strength: 55N/mm2 type: PU round belt
Character: Heat resistance
برجسته:

,

,

green round belt



Polyurethane belting of introduction:



We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers,kelver,steel cord. Also can joint belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , including clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Low compression Polyurethane Round Belt / Smooth Round Drive Belts 0Low compression Polyurethane Round Belt / Smooth Round Drive Belts 1
Service commitment:
“Quality for keeping going ,Credit to win the world”
