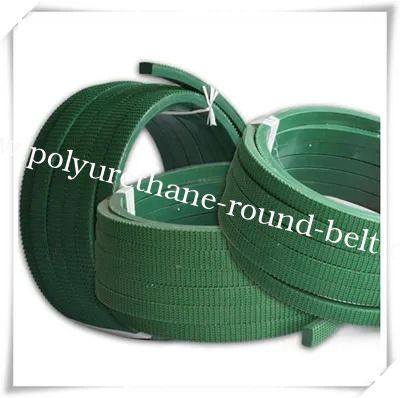

Non-Reinforced Polyurethane V Belt with Strong Tensile Strength and PVC Grip Top Surface for Superior Grip

  • Non-Reinforced Polyurethane V Belt with Strong Tensile Strength and PVC Grip Top Surface for Superior Grip
مقدار حداقل تعداد سفارش 1000
قیمت 1.8

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مادی پید مواد داخل پید
سختی 85 ساحل A ~ 90 ساحل A شکل نمایه وهمی
اندازه مشخصات A/13 ، B/17 ، C/22 تقویت هیچ کدام
رنگ قرمز سبز دورومتر 80a ، 90a
سطح بالایی پی وی سی طول بسته 30 متری /رول
عرض الف 13 میلی متر ارتفاع 8 میلی متر
عرض B 17 میلی متر ارتفاع ب 11 میلی متر
عرض ج 22 میلی متر
برجسته کردن

Non-Reinforced Polyurethane V Belt,Strong Tensile Strength Super Grip Belt,PVC Grip Top Surface PU V Belt

,

Strong Tensile Strength Super Grip Belt

,

PVC Grip Top Surface PU V Belt
پیام بگذارید
توضیحات محصول
Non-Reinforced Super Grip Belt
Conveyor PU V Belt with Super Grip / Transmission Polyurethane V Belt Top Green PVC
Manufacturer Overview
Wuxi Jiunai Polyurethane Products Co., Ltd is located in Wuxi City Shitang Bay Mountain Luoshe Town Industrial Park, near to 312 National Road. The company has international-leading polyurethane production lines and advanced testing equipment, maintaining a leading position in production scale, process technology, and technical strength.
Super Grip Belt Features
  • Profile shape: Vee
  • Profile size: A/13, B/17, C/22
  • Reinforcement: None
  • Color: Green, Red
  • Compliancy: RoHS
  • Durometer: 80A, 90A
  • Material: Polyurethane, PVC Top Surface
  • Special Feature: PVC Grip Top Surface
  • Package Length: 30meter/roll
  • Easily welded endless vee belt
Vee-Belt Applications
Widely used in conveying slippery environments and up steep inclines in industrial applications.
Technical Specifications
Specification X(mm) H(mm) Z(mm) M/rolls Reinforced Arabesquitic
A 13 8 3.5 30 · ·
B 17 11 3.5 30 · ·
C 22 14 3.5 30 · ·
D 32 19 3.5 30 · ·
M 8 4 50
Z 10 5 3.5 50 · ·
Product Description
Super grip belts are ideally suited for applications requiring conveying in slippery environments, up steep inclines, or moving easily damaged products. These belts combine the elasticity of an unreinforced V-belt with a super grip surface. The PU Vee Super Grip with top PVC surface is soft and tacky enough to protect delicate cargo while providing excellent grip.
"Quality for keeping going, Credit to win the world"
