Wuxi Jiunai Polyurethane Products Co., Ltd
خانه محصولاتکمربند دور پلی اورتان

High Tensile PU Smooth Rubber Conveyor Belts Drive transmission

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

High Tensile PU Smooth Rubber Conveyor Belts Drive transmission

High Tensile PU Smooth Rubber Conveyor Belts Drive transmission
High Tensile PU Smooth Rubber Conveyor Belts Drive transmission High Tensile PU Smooth Rubber Conveyor Belts Drive transmission High Tensile PU Smooth Rubber Conveyor Belts Drive transmission High Tensile PU Smooth Rubber Conveyor Belts Drive transmission

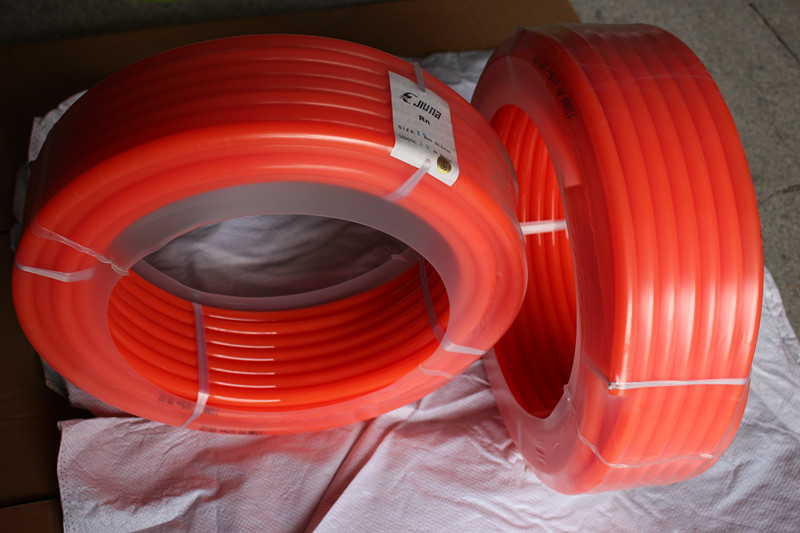

تصویر بزرگ :  High Tensile PU Smooth Rubber Conveyor Belts Drive transmission

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Diameter 10mm
پرداخت:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 95.000 meters per Month
توضیحات محصول جزئیات
length: 50 m/roll color: orange
Appl.Temp: -35/+75 Tensile Strength: 55N/mm2
Main function: Drive transmission Model type: 2mm-20mm
برجسته:

,

,

pu extruded belt

High Tensile PU Smooth Rubber Conveyor Belts Drive transmission



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

4mm 1.38 35 1.5-3% 1.2 2.7 85 200
5mm 1.57 40 1.5-3% 2.0 4.3 85 100
6mm 1.97 50 1.5-3% 3.2 7.0 85 100
7mm 2.17 55 1.5-3% 4.1 9.0 85 100
8mm 2.56 65 1.5-3% 5.0 11.0 85 100
9mm 2.95 75 1.5-3% 6.8 15.0 85 50
10mm 2.95 75 1.5-3% 7.7 17.0 85 50
12mm 3.94 100 1.5-3% 12.2 27.0 85 30
15mm 4.72 120 1.5-3% 17.7 39.0 85 30
18mm 5.71 145 1.5-3% 25.4 56.0 85 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 30

polyurethane round belt of  introduction:

We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body.



Service commitment:

“Quality for keeping going ,Credit to win the world”



High Tensile PU Smooth Rubber Conveyor Belts Drive transmission 0High Tensile PU Smooth Rubber Conveyor Belts Drive transmission 1
