جزئیات محصول:
پرداخت:
|
| length: | 50 m/roll | color: | orange |
|---|---|---|---|
| type: | Pu smooth round belt | Appl.Temp: | -35/+75 |
| Tensile Strength: | 55N/mm2 | Main function: | Drive transmission |
| برجسته: | ,,green round belt |
||
Tear Strength Smooth Power Transmission Belts Wood Working Machineries
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 | 30 |

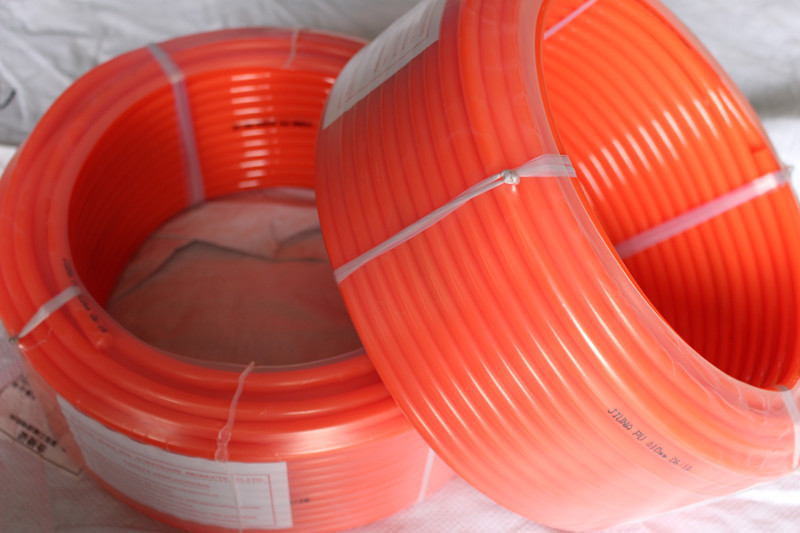

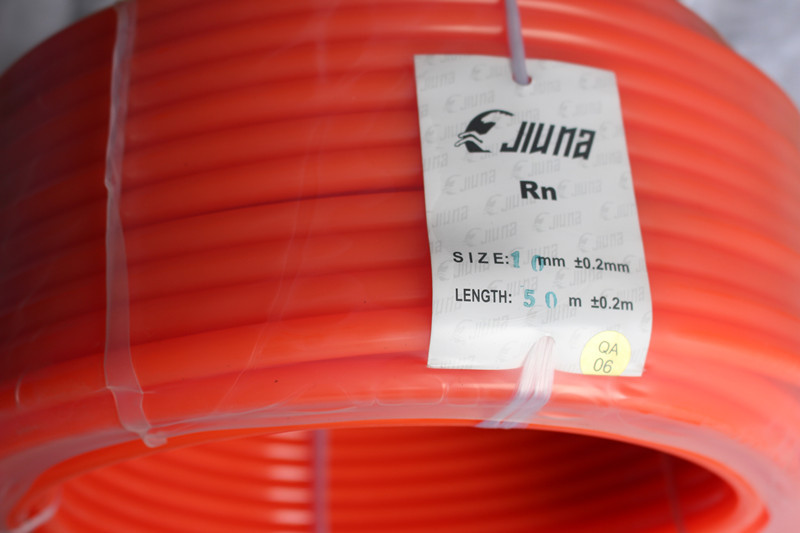

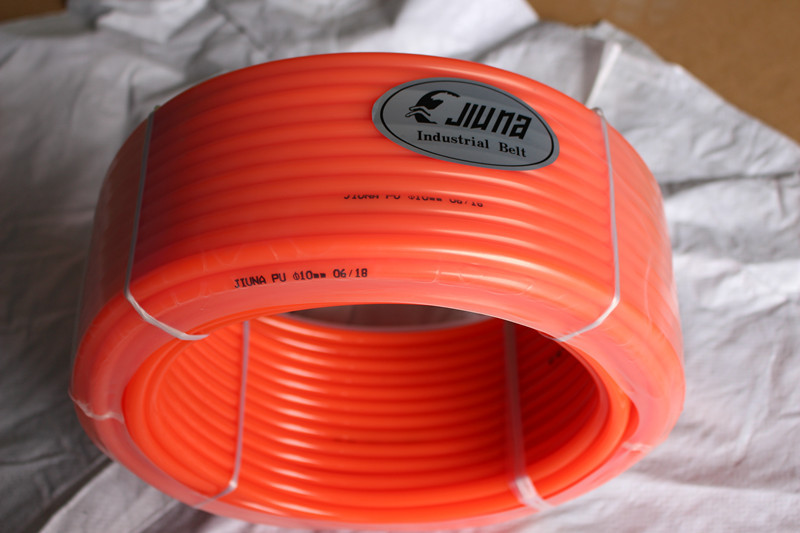

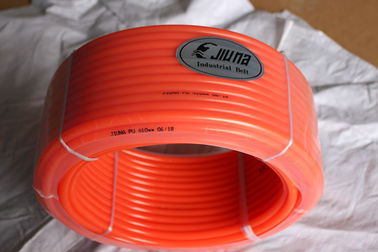

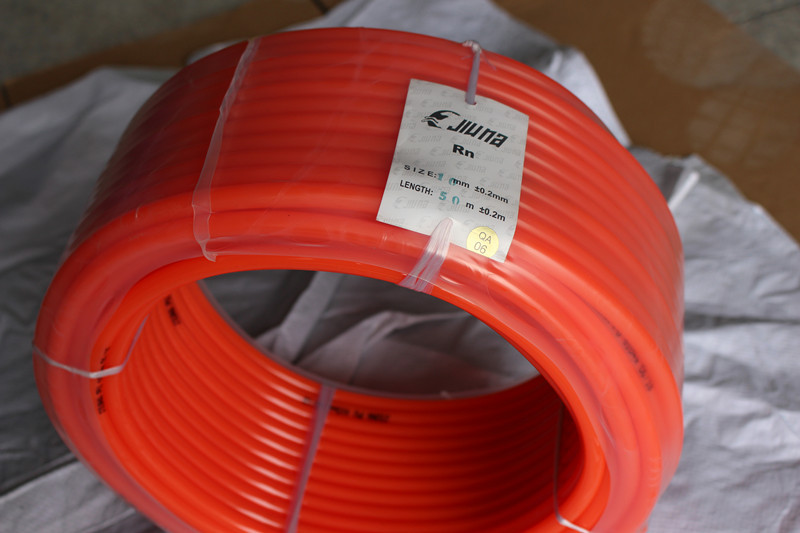

polyurethane round belt of introduction:
We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
