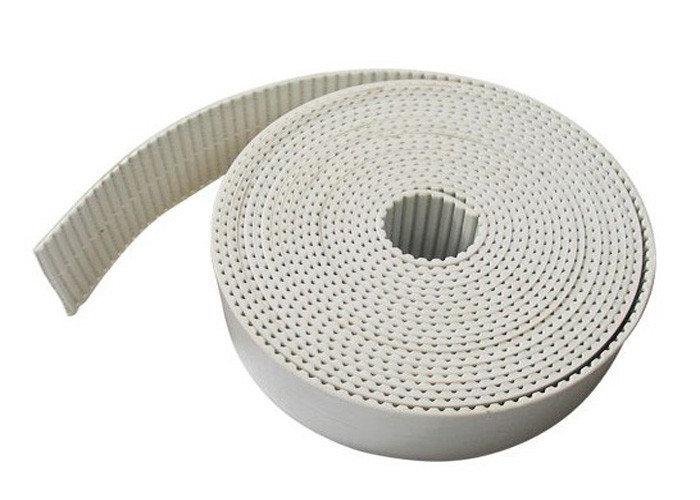

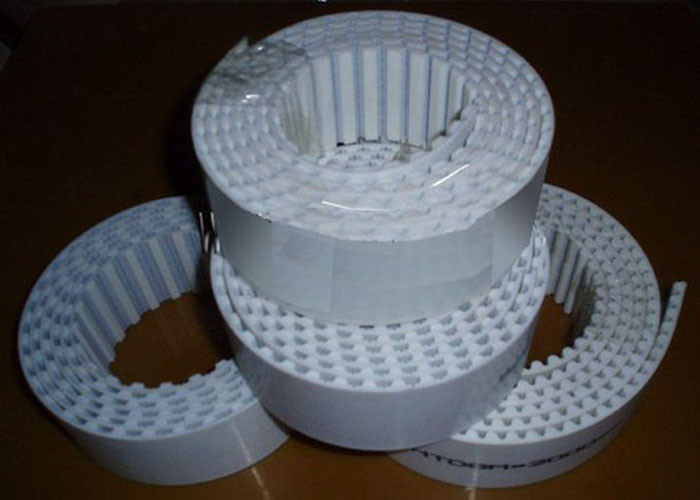

Industrial Open Ended PU Polyurethane Timing Belts for Conveyor
| Place of Origin | China |
|---|---|
| نام تجاری | Jiuna |
| گواهی | ROHS |
| Model Number | Specific requirement are available on request. |
| Minimum Order Quantity | 20 Piece |
| Packaging Details | Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers' |
| Delivery Time | Within 15 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C |
| Supply Ability | 6000 piece per Month |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| برجسته کردن | polyurethane flat belt,industrial timing belt,industrial timing belt |
||
|---|---|---|---|
توضیحات محصول
Industrial Open Ended PU Polyurethane Timing Belts for Conveyor
PU Timing belt type :
1) Polyurethane Truly Endless Timing Belts,
2) Polyurethane Open End Timing Belts,Welded ended timing belt ,Flex timing belt
3) Polyurethane Double side timing belts,
4) Jointed/welded Pu Timing Belts and special belts etc.
PU Timing belt Feature:
1) material: polyurethane with steel or kevlar cord
2) OEM, sample order
3) competitive price
4) Good anti-cracking performance.
5) Anti Aging,Anti Hydrolyze ,Anti UVA,Anti-Ozone.
6) Operating Temperature -30∼+80 the Max. degree within short time can up to +110
7) Anti-oil and anti-ester, Anti acid. etc.
Timing Belt Application :
1. PU food grade industrialis conveyer Belt.
2. Applied to low-load synchronous hierarchical transmission,
3. Office automation systems and home appliance.
Technical Parameters:
|
|
WIDTH(mm) |
Maximum Traction Force -OPEN(N) |
Maximum Traction Force -Jointed Belt (N) |
Maximum Traction Force -Endless Belt (N) |
Belts Weight (kg/m) |
|
|
|
25 |
6020 |
3010 |
5620 |
0.270 |
|
|
32 |
7400 |
3700 |
7150 |
0.350 |
||
|
50 |
12040 |
6020 |
11250 |
0.550 |
||
|
75 |
18050 |
9025 |
16100 |
0.800 |
||
|
100 |
25000 |
12500 |
22500 |
1.100 |
||
|
150 |
36400 |
18050 |
33200 |
1.600 |
||
|
200 |
49100 |
24550 |
|
2.13 |
||
|
Width Tolerance (mm) |
±1.0 |
|||||
|
Thickness Tolerance (mm) |
±0.45 |
|||||
Products introduction:
PU flat timing belt are made in thermoplastic polyurethane, With continuous spiral steel cords. There are especially suited for power synchronous and conveying with high speeds(up to 10,000RPM), The sizes we have for the Polyurethane Jointed/Welded timing belts are as follows: XL, L, H, XH, 3M, 5M, 8M, 14M, 20M, S3M, S5M, S8M, S14M, S20M, T2.5, T5, TT5, T10, T20, AT5, AT10, AT20 etc. The biggest width is 200mm.Reinforce cord can be made of steel cord or Kevlar cord.
Service commitment:
“Quality for keeping going ,Credit to win the world”
