| Hardness: | 85 shore A ~90 shore A | Length: | 100 meter /rolls 50m/ roll 30m / roll |
|---|---|---|---|
| color: | any color | material: | color |
| Tensile Rate: | 0.3kg-31.3kg | Stretching Rate: | 1.5%-3% |
| برجسته: | Reinforced cord belt, industrial timing belt,industrial timing belt |
||

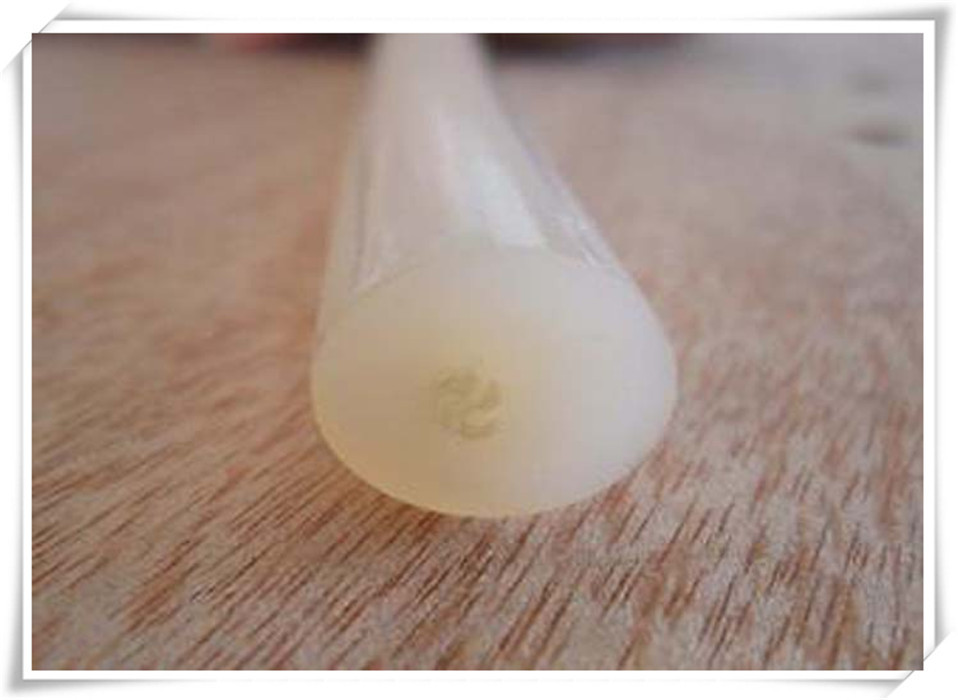

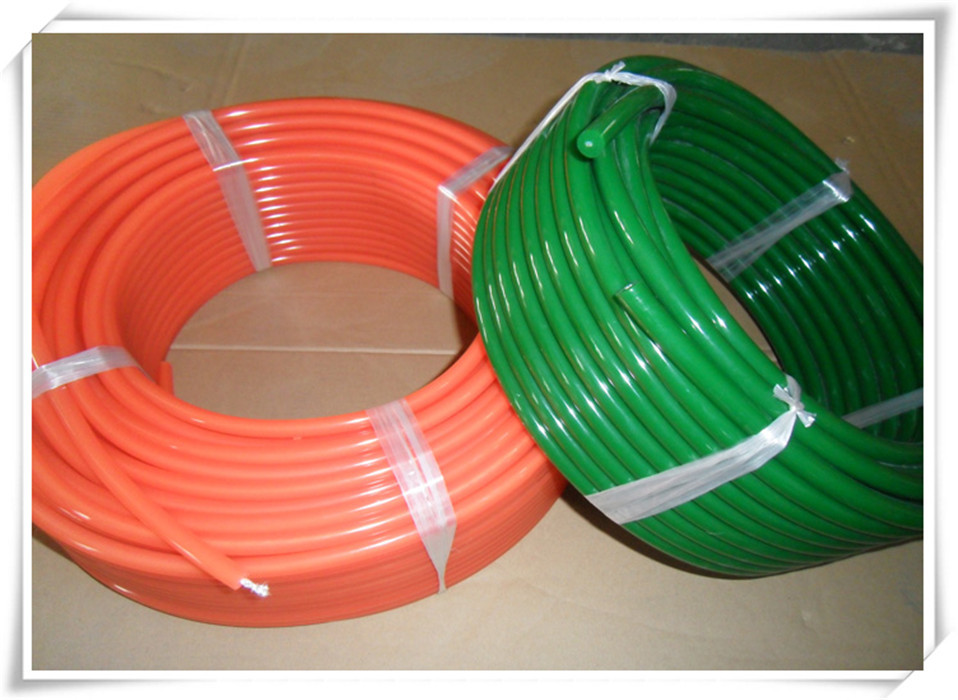

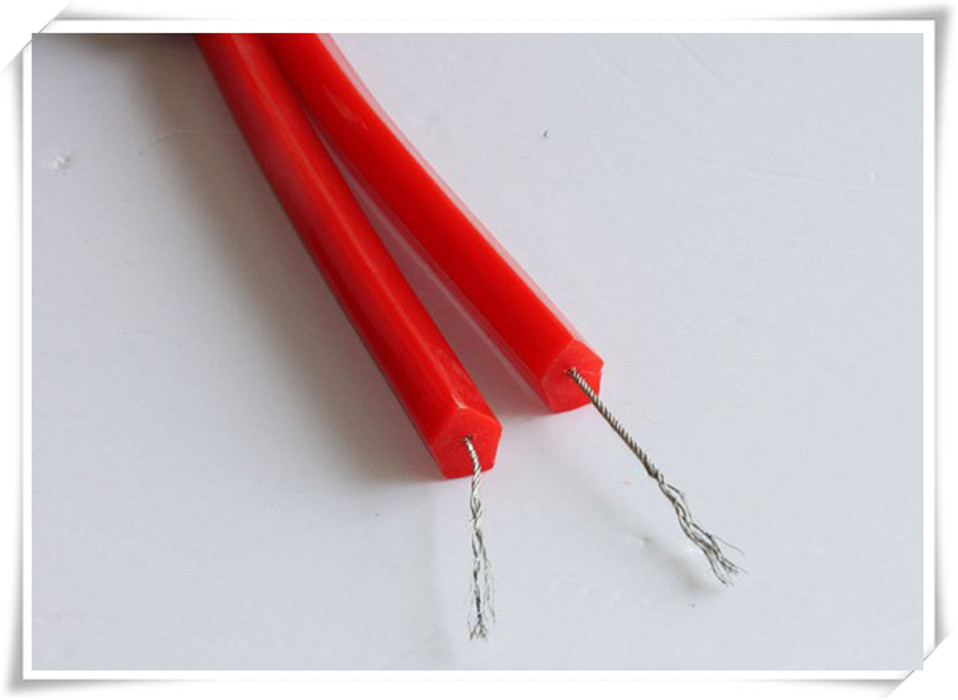

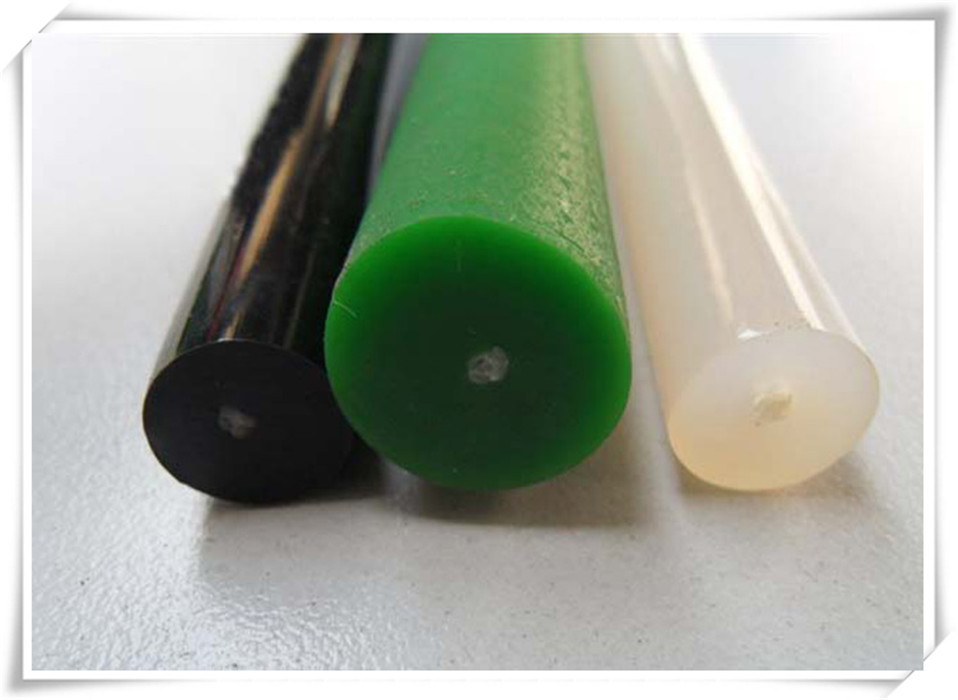

Nylon cord belt Feature :
1. Available in round or V-sections
2. Low Stretch,anti-abrasion
3. Can be cogged for increased flexibility
4. Easily made endless with a Drive welding Kit
polyurethane belt Application :
1 The elevator slide shaft
2. Medium- to heavy-duty applications
3. Conveying or diverging applications, product sizing
4. For conveying wood, laminate, roof and ceiling tile
Item φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
DIA | In | mm | Stretching rate | Kg | Lbs | Hardness | Roll |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 | 30 |
