| hardness: | 85A-90A | material: | Polyurethane |
|---|---|---|---|
| test: | DIN standard | Main function: | Drive transmission |
| Size range: | Type A B C D | color: | Red Green color. |
| برجسته: | ,,pu extruded belt |
||

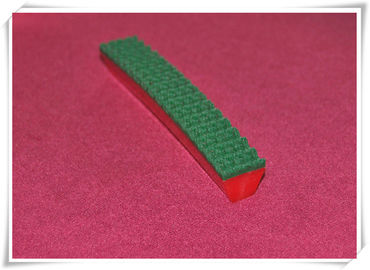

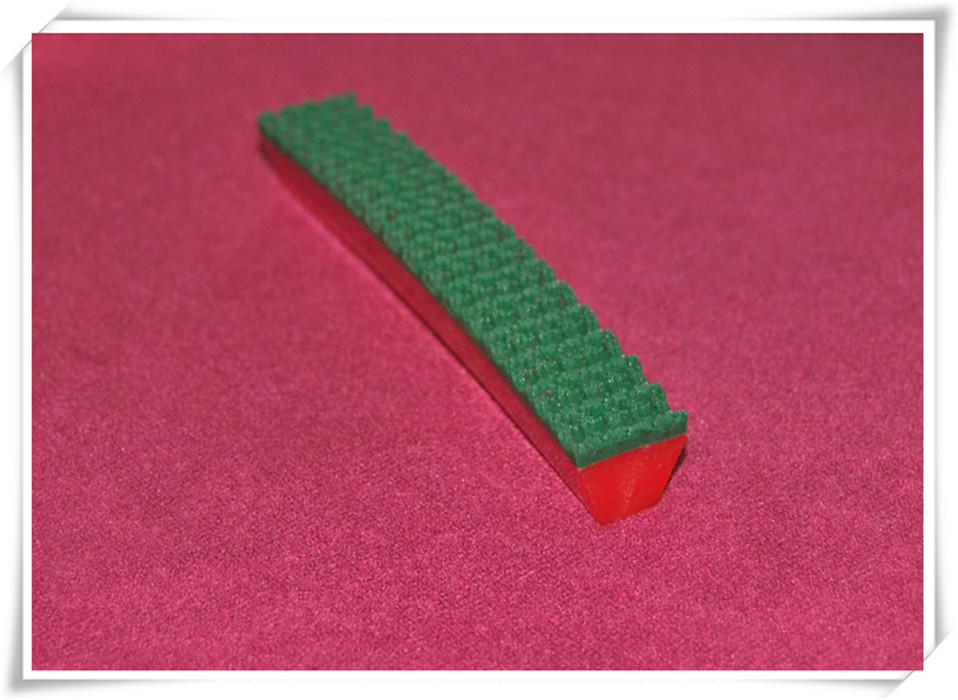

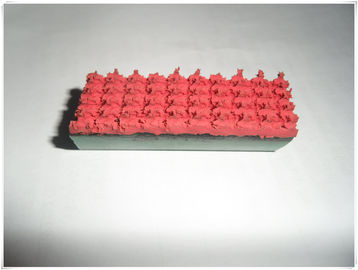

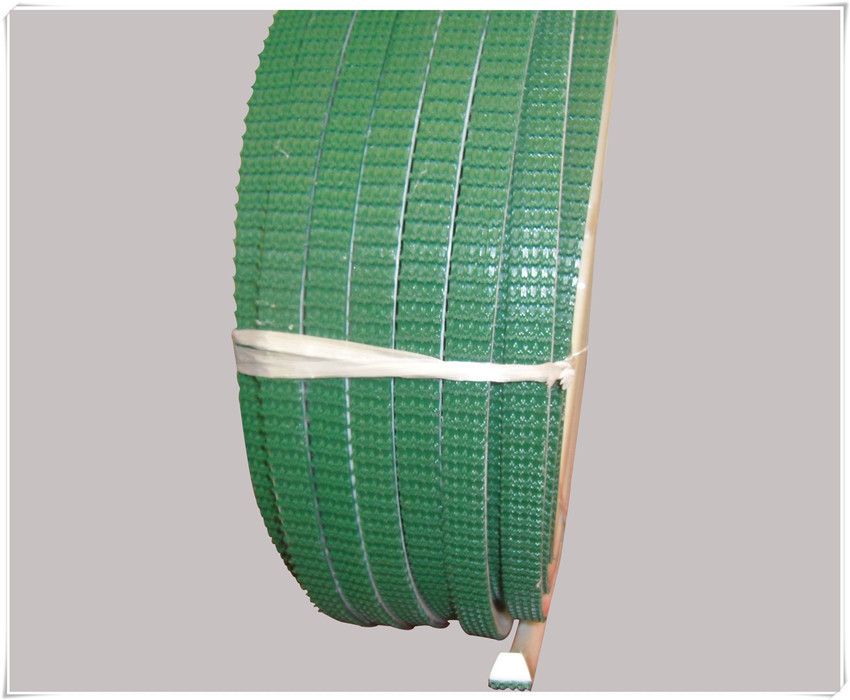

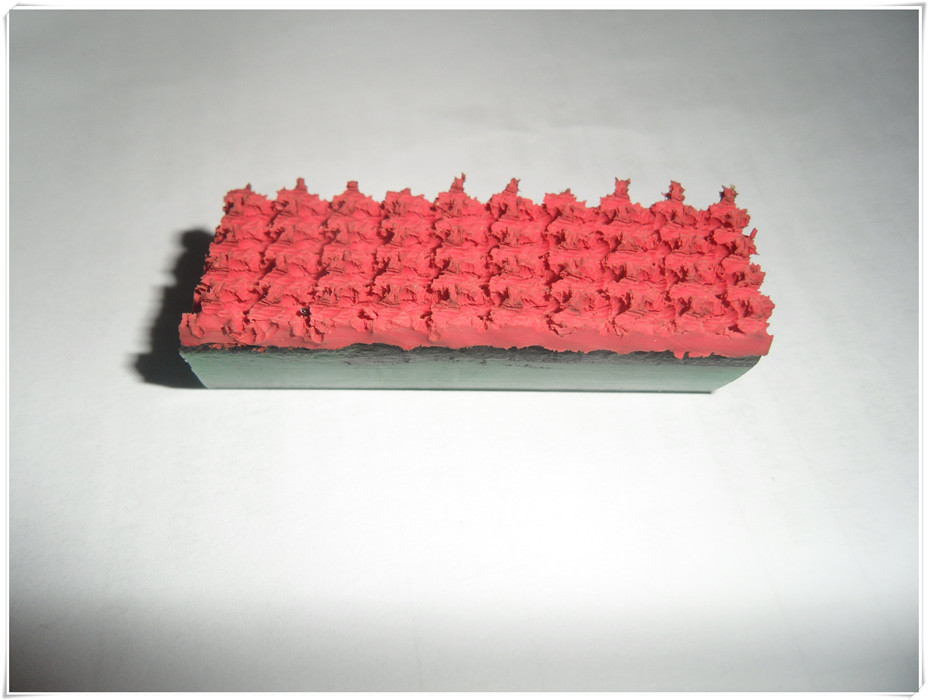

Hardness Super Grip PU round belt Corrugated Industry High tensile
Features:
Outstanding abrasion resistance .High tensile and tear strength . Resistance to oils, fuels,and oxygen Good weatherability and high impact resistance .Low compression set.
Application:
Newspaper conveying, Packing machines, Ceramic and stoneware processing plants, Floor and roof tiles conveying, Textile machines, Paper industry machines, Food grading machines, other food processing machines.
Product Technical Parameters :
|
Specification |
X(mm) |
H(mm) |
Hardness (Shore A) |
M/rolls |
Reinforced |
|---|---|---|---|---|---|
|
A |
13mm |
8mm |
90A |
30m |
· |
|
B |
17mm |
11mm |
90A |
30m |
· |
|
C |
22mm |
14mm |
90A |
30m |
· |
|
D |
32mm |
19mm |
90A |
30m |
· |
|
M |
8mm |
4mm |
90A |
50m |
|
|
Z |
10mm |
5mm |
90A |
50m |
· |
