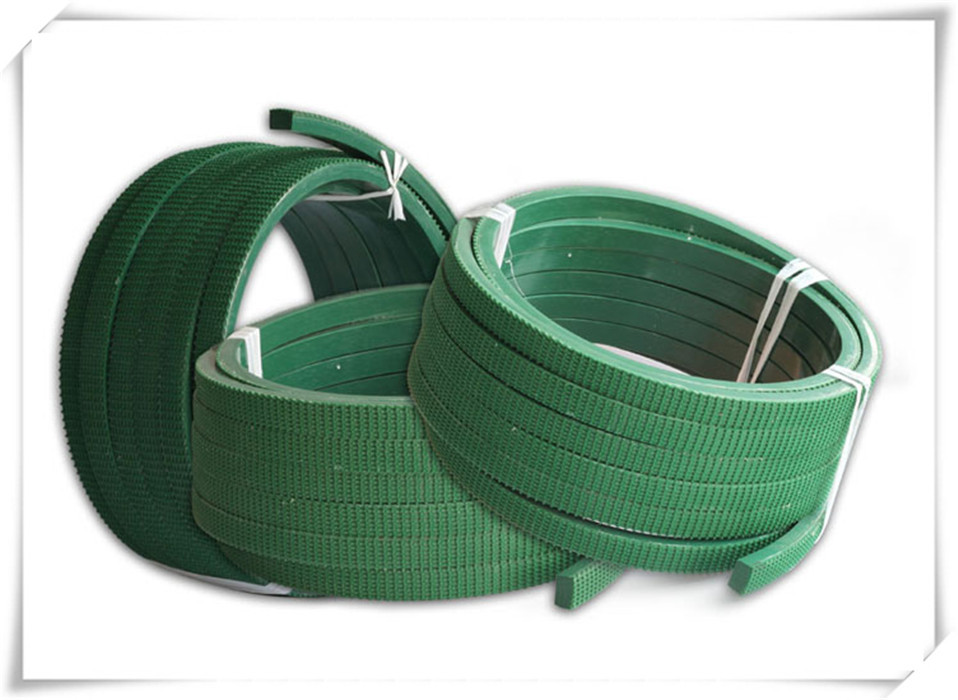

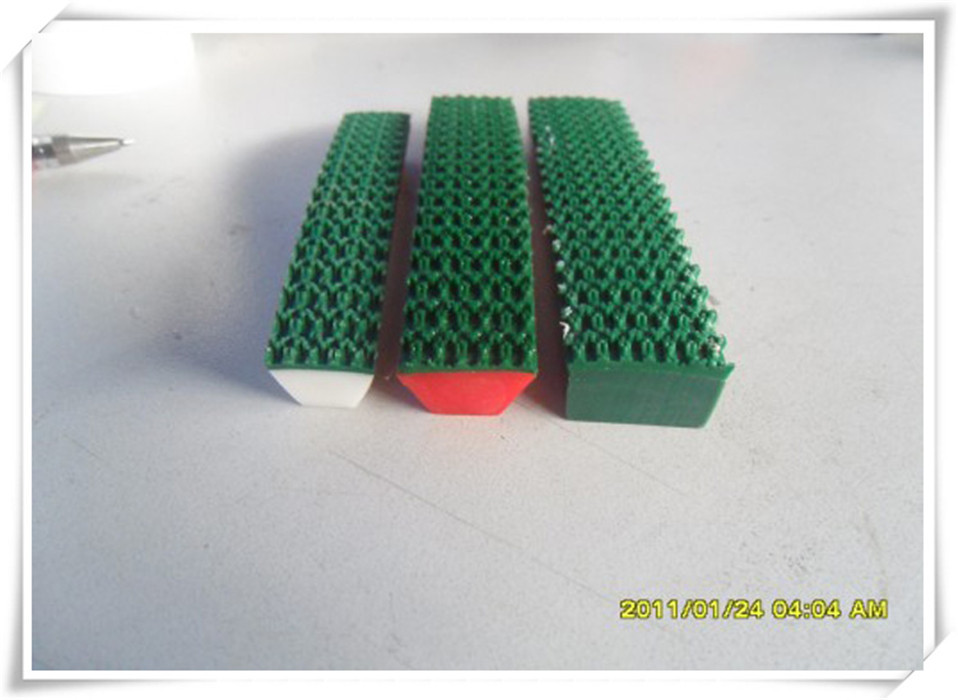

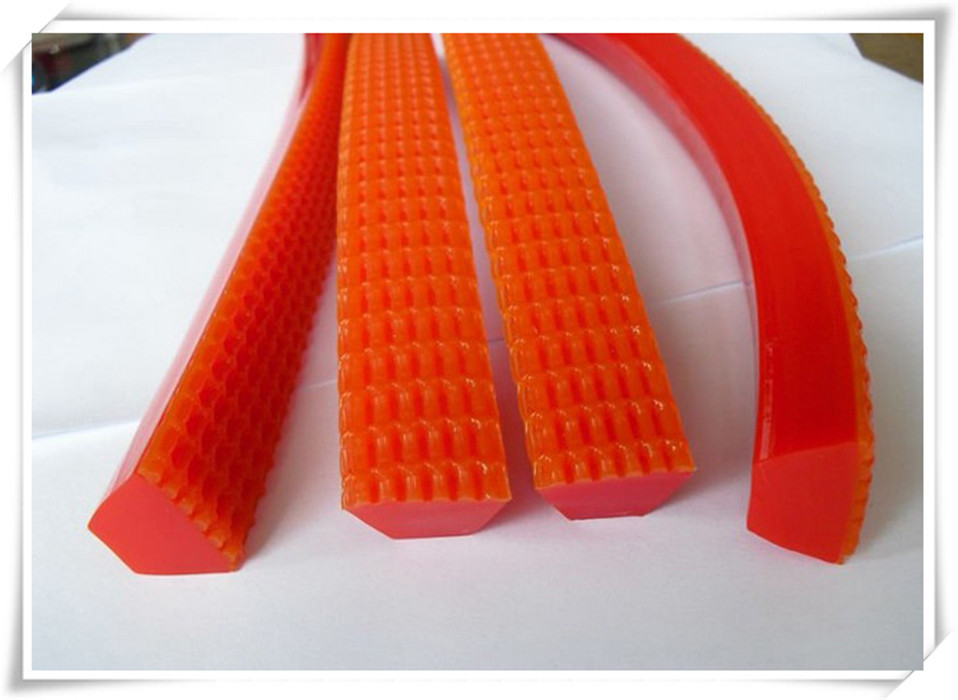

Packing Industry PU extruded belt Corrugated High Temperature Resistant
| Place of Origin | china |
|---|---|
| نام تجاری | jiuna |
| گواهی | ROHS |
| Model Number | A-13 B-17 C-22 |
| Minimum Order Quantity | 10 rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96,000,00 mester per month |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| material | Polyurethane | material | Polyurethane |
|---|---|---|---|
| hardness | 85A-90A | hardness | 85A-90A |
| test | DIN standard | test | DIN standard |
| Main function | Drive transmission | Main function | Drive transmission |
| Size range | Type A B C D | color | Red Green color. |
| Size range | Type A B C D | color | Red Green color. |
| برجسته | ,,pu extruded belt |
||
توضیحات محصول
Packing Industry PU extruded belt Corrugated High Temperature Resistant
Features:
1. Outstanding abrasion resistance
2. High tensile and tear strength
3. Resistance to oils, fuels,and oxygen
4. Good weatherability and high impact resistance
5. Low compression set
Application:
(1). Newspaper conveying,
(2) Packing machines,
(3) Ceramic and stoneware processing plants,
(4) Floor and roof tiles conveying,
(5) Wood Working machineries,
(6) Textile machines,
(7) Paper industry machines,
(8) Food grading machines, other food processing machines.
Product Technical Parameters :
|
Specification |
X(mm) |
H(mm) |
Hardness (Shore A) |
M/rolls |
Reinforced |
|---|---|---|---|---|---|
|
A |
13 |
8 |
90A |
30m |
· |
|
B |
17 |
11 |
90A |
30m |
· |
|
C |
22 |
14 |
90A |
30m |
· |
|
D |
32 |
19 |
90A |
30m |
· |
|
M |
8 |
4 |
90A |
50m |
|
|
Z |
10 |
5 |
90A |
50m |
· |
