| Main function: | Drive transmission | material: | Polyurethane |
|---|---|---|---|
| Size range: | Type A B C D | color: | Red Green color. |
| hardness: | 85A-90A | test: | DIN standard |
| Main function: | Drive transmission | Size range: | Type A B C D |
| color: | Red Green color. | ||
| برجسته: | ,,pu extruded belt |
||

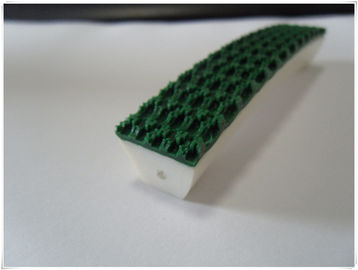

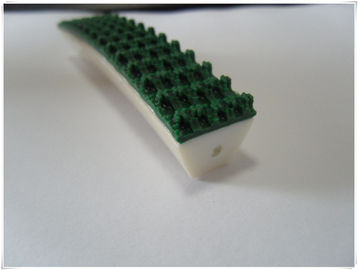

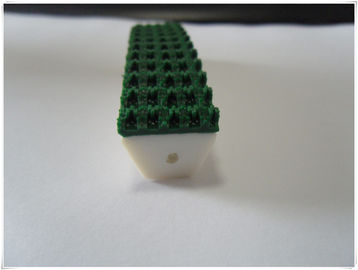

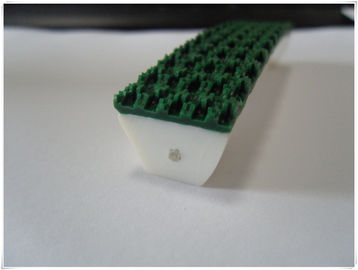

Reinforced Super Grip Belt Corrugated Belt with PVC , DIN standard
Features:
1.Outstanding abrasion resistance
2.High tensile and tear strength
3.Resistance to oils, fuels,and oxygen
4.Good weatherability and high impact resistance
5.Low compression set
Product Technical Parameters :
|
Specification |
X(mm) |
H(mm) |
Hardness (Shore A) |
M/rolls |
Reinforced |
|---|---|---|---|---|---|
|
A |
13mm |
8mm |
90 |
30 |
· |
|
B |
17mm |
11mm |
90 |
30 |
· |
|
C |
22mm |
14mm |
90 |
30 |
· |
|
D |
32mm |
19mm |
90 |
30 |
· |
|
M |
8mm |
4mm |
90 |
50 |
|
|
Z |
10mm |
5mm |
90 |
50 |
· |
Application:
Newspaper conveying, Packing machines, Ceramic and stoneware processing plants, Floor and roof tiles conveying, Wood Working machineries, Textile machines, Paper industry machines, Food grading machines, other food processing machines.
