Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial

  • Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial
  • Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial
  • Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial
Place of Origin China
نام تجاری jiuna
گواهی ROHS
Model Number Diameter 5mm~15mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton .
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
color green material PU
longth 300m/roll 200m/roll 100m/roll hardness 85A-90A
tensile rate 0.3kg-31.3kg stretching rate 1.5%-3%
برجسته کردن

,

,

pu extruded belt
پیام بگذارید
توضیحات محصول

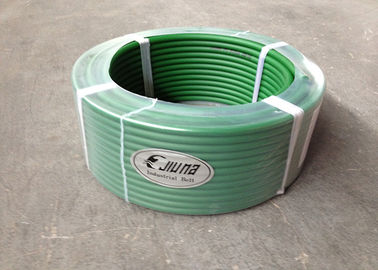

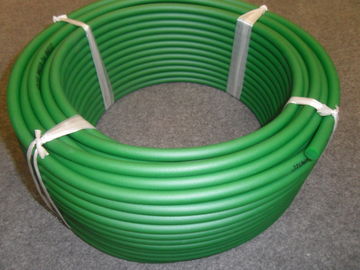

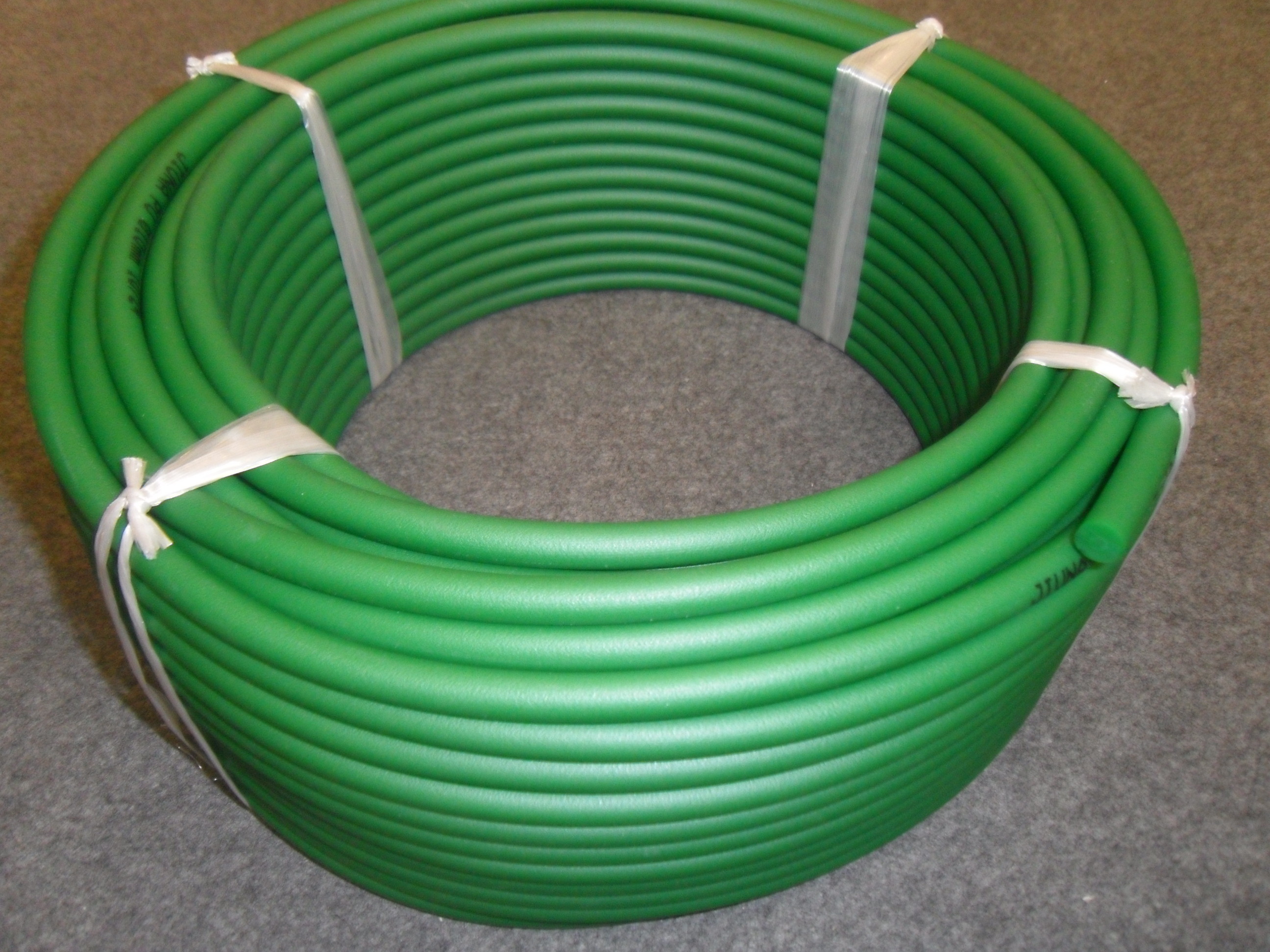

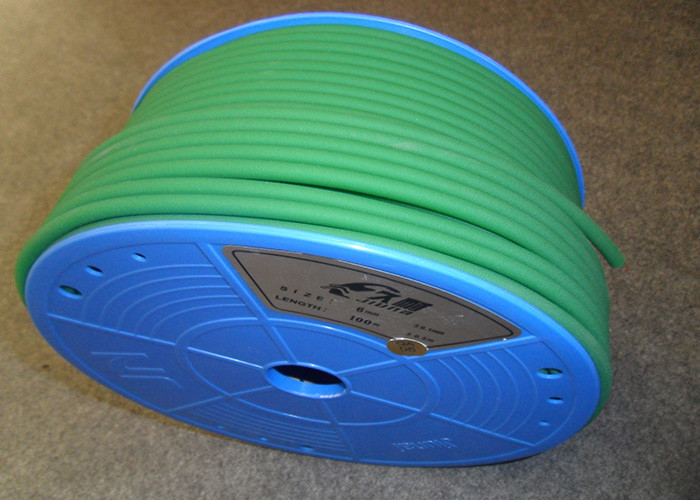

Tensile Strength Polyurethane Round Belt / PU Round Belt for lndustrial

PU Cord Belt Application :

1. Wall floor tile conveying industrial line

2. printing and packing machine

3. food & beverage processing

4. wood processing

5. paper processing

6. electronic

7. post service

8. tobacco transmission line

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

1. With excellent bend resistant

2. wear resistant

3. easy connected

4. it's not easy to be broken at low temperature

Wuxi jiunai  polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production  line, the introduction of international  advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity.

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20 1.5-3% 0.3 0.7 90 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 200
5mm 1.57 40 1.5-3% 2.0 4.3 85 100
6mm 1.97 50 1.5-3% 3.2 7.0 85 100
7mm 2.17 55 1.5-3% 4.1 9.0 85 100
8mm 2.56 65 1.5-3% 5.0 11.0 85 100
9mm 2.95 75 1.5-3% 6.8 15.0 85 50
10mm 2.95 75 1.5-3% 7.7 17.0 85 50
12mm 3.94 100 1.5-3% 12.2 27.0 85 30
15mm 4.72 120 1.5-3% 17.7 39.0 85 30
18mm 5.71 145 1.5-3% 25.4 56.0 85 30
20mm 6.30 160 1.5-3% 31.3 69.0 85

30







Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial 0Good Weatherability High Impact Resistance Tensile Strength Polyurethane Round Belt For Industrial 1
