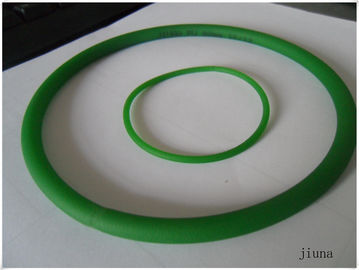

10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord

10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord
10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord

تصویر بزرگ :  10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Diameter 2mm~20mm
پرداخت:
Minimum Order Quantity: 500-1000pcs
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 6000 piece per Month
توضیحات محصول جزئیات
material: PU hardness: 80A-90A
length: 1040mm diameter: 10mm
color: green pre-tensioning: 1.5%-3%
برجسته:

,

,

green round belt

10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord

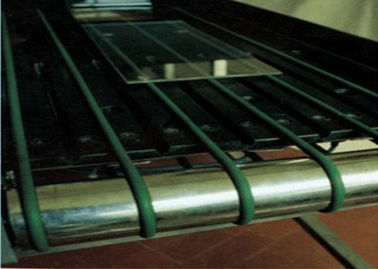

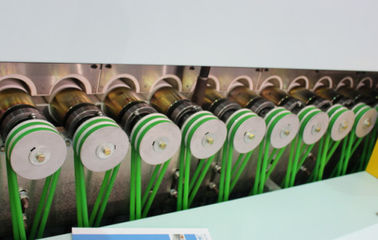

Polyurethane Seamless O-ring cord Application :

-Printing and folding machine

-Newspaper conveying

-Glass machine

-Toughened equipment.

-Ceramic and stone ware

-Processing, Plants, Canneries

Seamless O-ring  Properties :

-High tensile strength

-Excellent abrasion resistance

-Good resistance to fuel , oils and oxygen

-Contains no plasticizer

-Wide application temperature from -30℃~+80℃



Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


10 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 010 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 110 × 1040mm Polyurethane Round Belt for Toughened Equipment , PU Jointed O-ring Cord 2
