Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

Seamless pu belt conveyor Abhesion Resistance , Transmission Belting
Seamless pu belt conveyor Abhesion Resistance , Transmission Belting Seamless pu belt conveyor Abhesion Resistance , Transmission Belting Seamless pu belt conveyor Abhesion Resistance , Transmission Belting Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

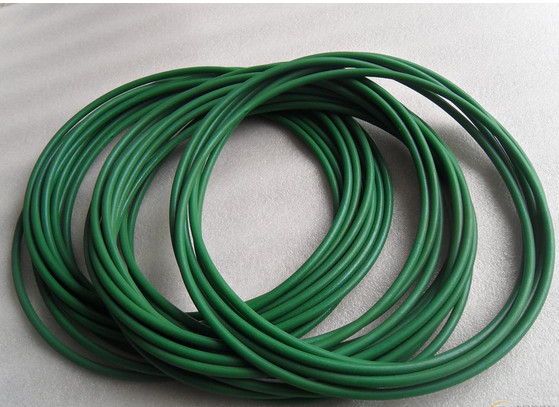

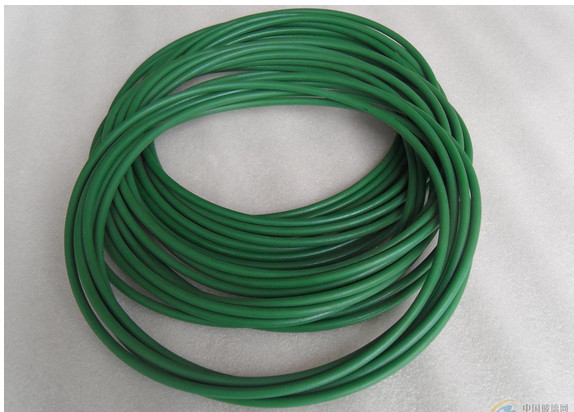

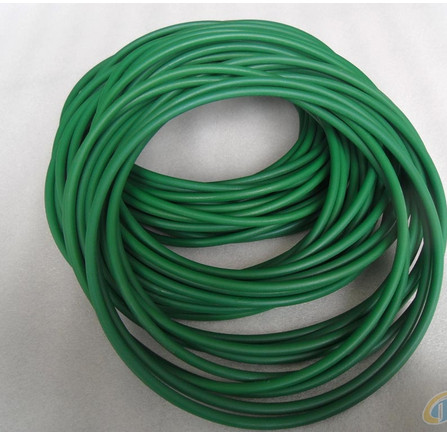

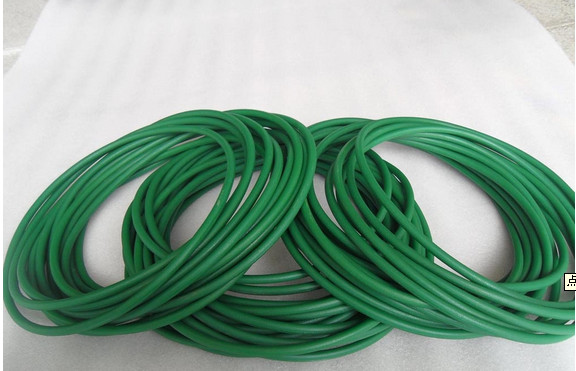

تصویر بزرگ :  Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

جزئیات محصول:

Place of Origin: wuxi city of china
نام تجاری: jiuna
گواهی: ROHS
Model Number: diamter 3mm-20mm

پرداخت:

Minimum Order Quantity: 500 pcs
Packaging Details: nner packing is plastic film .outer packing is carton
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, Western Union
Supply Ability: 96.000 meters per Month
توضیحات محصول جزئیات
color: green material: PU
hardness: 70A-95A heat-resistant moderate temperature: -50 ℃ to + 85 ℃
stretching rate: 1.5-3% type: Seamless, round belt
factory: wu xi of china
برجسته:

pu extruded belt

,

green round belt

Seamless pu belt conveyor Abhesion Resistance , Transmission Belting



The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shaft.We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine, convey or machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hot press welding , overlap welding .

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


Seamless pu belt conveyor Abhesion Resistance , Transmission Belting 0Seamless pu belt conveyor Abhesion Resistance , Transmission Belting 1
