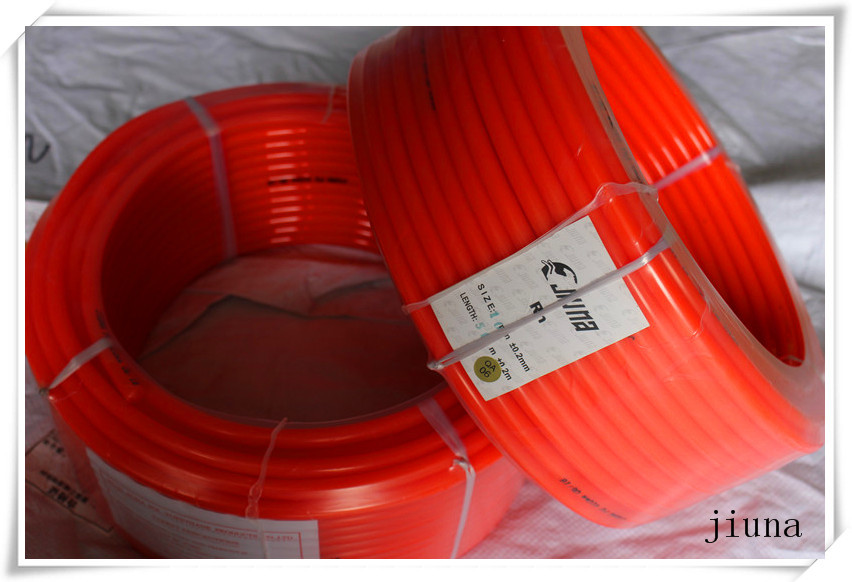

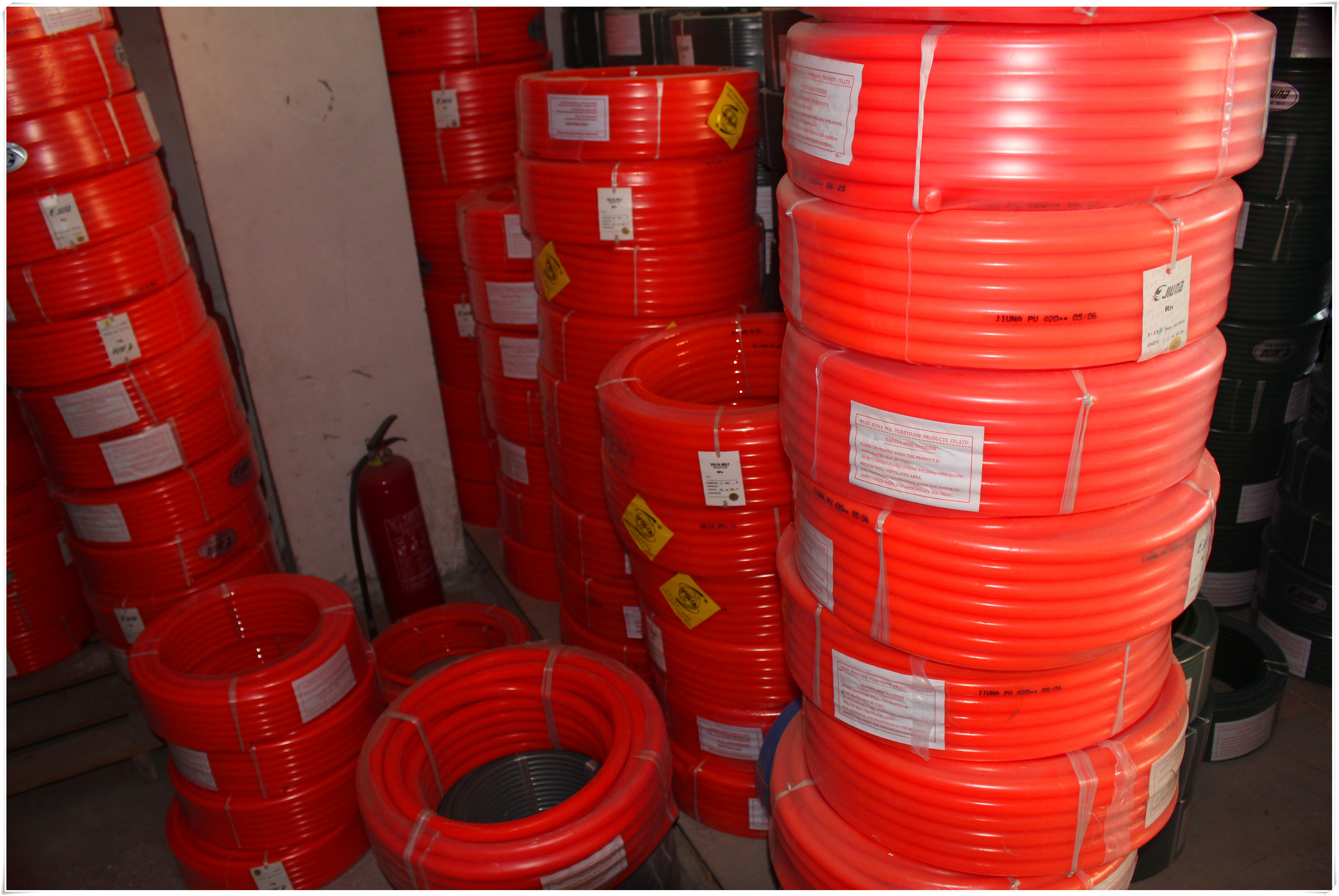

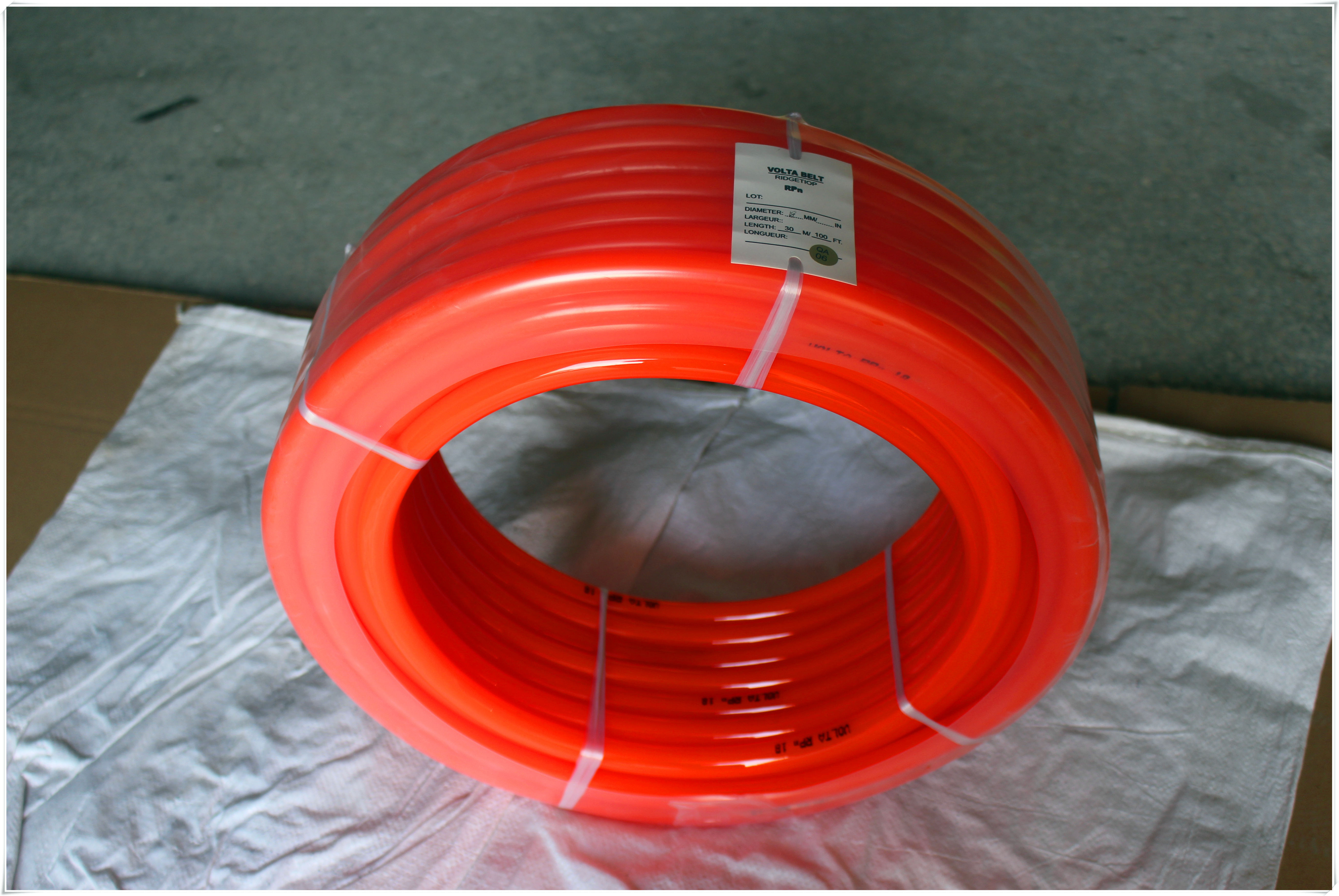

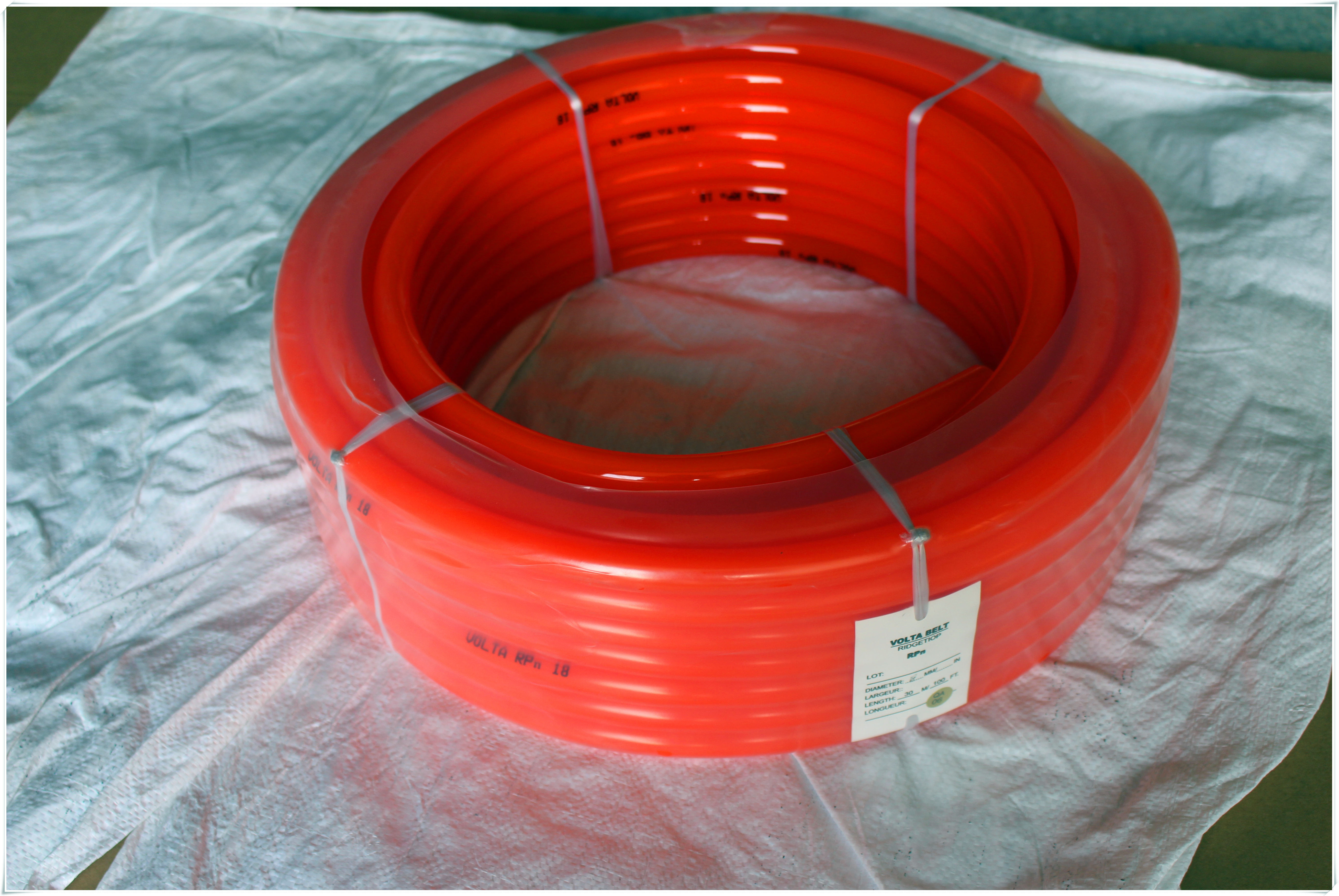

Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line

Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line
Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line

تصویر بزرگ :  Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line

جزئیات محصول:

Place of Origin: china
نام تجاری: jiuna
گواهی: ROHS
Model Number: Diameter 2mm-20mm

پرداخت:

Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
توضیحات محصول جزئیات
surface: smooth color: orange
diameter: 10mm Type: PU round belt
material: PU length: 100m/roll
برجسته:

pu round belt

,

pu extruded belt

Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line



(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35°C - +75°C
(4) Shore A hardness range 45A - 90A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20 1.5-3% 0.3 0.7 90 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 200
15mm 4.72 120 1.5-3% 17.7 39.0 85 30
18mm 5.71 145 1.5-3% 25.4 56.0 85 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 30

Products introduction:

Urethane round belts are elastomeric belts for power transmission application.

Having most metric sizes (2mm to 20mm) and standard O-ring sizes.

Polyether and Polyurethane round belts have best resilience of any elastic material.

Polyester product has good wear resistance, its wear resistance is 3.5 times of common

plastic and rubber.

1.24 hours technical support by email
2.Professional After-sales service
3. ISO9001:2000 and TS16949 certificated.
4. OEM available.
5. More than ten years of sales and manufacture experience
6.100% test for air pressure and inspection for product appearance before shipment.
7. Long lifespan, competitive price.
8. Good payment term.
9. Fast delivery.
10.Thread Standard: BSPP, BSPT, NPT, METRIC etc. Our products are exported to more than 30 countries in the whole world.
11. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.
12. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory

Service commitment:

“ Quality for keeping going ,Credit to win the world”

Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line 0Resistant to oil Polyurethane Round Belt Urethane Belting for Packing line 1
