Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt
Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt

تصویر بزرگ :  Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt

جزئیات محصول:

Place of Origin: China
نام تجاری: VOLTA
گواهی: ROHS
Model Number: Diameter2mm-20mm

پرداخت:

Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
توضیحات محصول جزئیات
color: orange color hardness: 90A
longth: 400 m/roll Usage: Transmission Chain
type: PU rough round belt surface: smooth
material: PU
برجسته:

pu round belt

,

green round belt

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt
We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon
Color: Orange, Red, Dark Green, Ivory, Natural  .
Shore Hardness:  Round belt - 87°A ± 2 .
Rough surface: Normal Rough / More Rough  .
Steel, Glass & Aramid Reinforcement on request.
Easily jointed with BCTech's Welding Kits
Features:
High tensile and tear strength
High abrasion resistance
Resistant to oil, grease, dust, moisture & most chemicals
Temperature Range: -35 ~ 85 Degrees
The types of TPU V-Belt:
Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,
heptagonal belt, supper-grip belt, T belt, perallel belt.
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile   rate

Hardness

Length of rolled

DIA(mm)

 In

mm

    %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

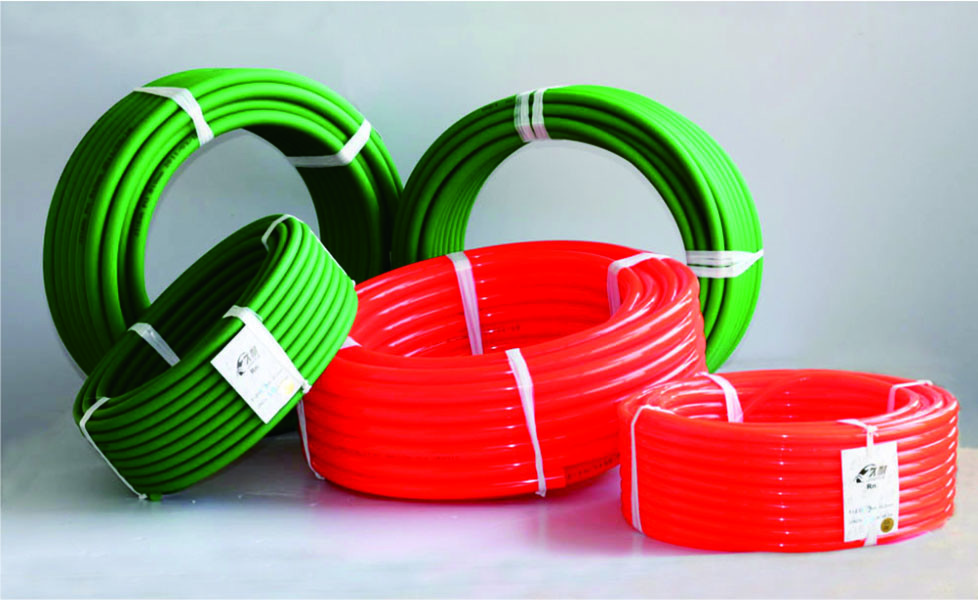

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt 0

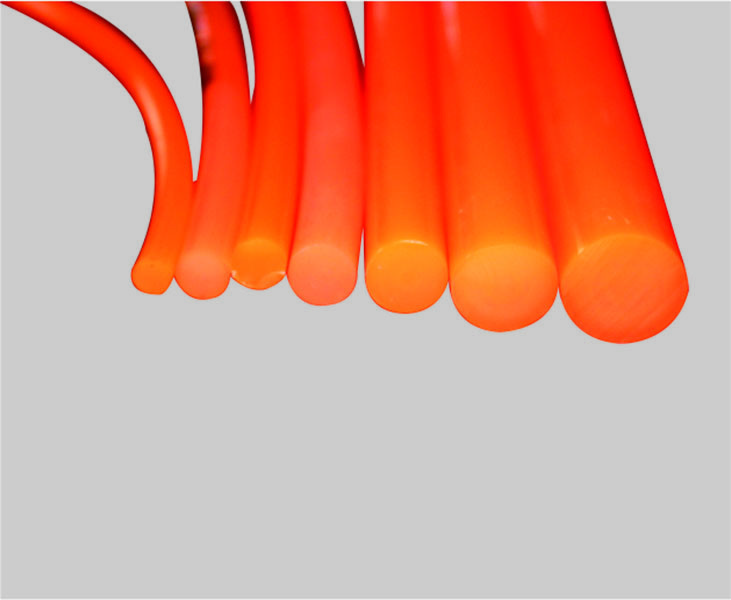

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt 1
Service commitment:

“ Quality for keeping going ,Credit to win the world”
