B-17 For Up steep conveying industrial line With Top PVC

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

B-17 For Up steep conveying industrial line With Top PVC

B-17 For Up steep conveying industrial line With Top PVC
B-17 For Up steep conveying industrial line With Top PVC B-17 For Up steep conveying industrial line With Top PVC

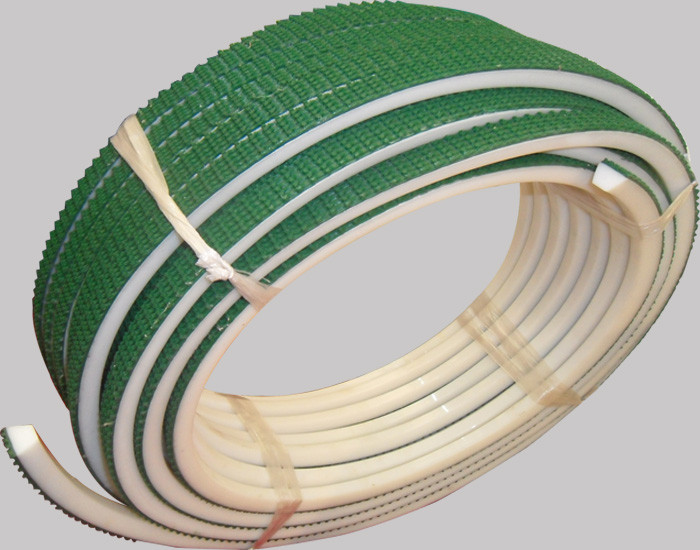

تصویر بزرگ :  B-17 For Up steep conveying industrial line With Top PVC

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: A-13 ,B-17 ,C-22
Hardness: 85 shore A ~90 shore A
Length: 30 meter /roll
پرداخت:
Minimum Order Quantity: 10rolls
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi city
توضیحات محصول جزئیات
برجسته:

,

,

green round belt



B-17 For Up steep conveying industrial line With Top PVC





Vee-Belt Application :







· Widely used in conveying slippery environments,



· Up steep inclines conveying industrial .







Service commitment:





 “Quality for keeping going ,Credit to win the world”

Products introduction:

Super grip belt ,Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface. Perfect for conveying in the most abrasive

environments such as moving concrete blocks, bricks, and tiles of all types.

                                                          B-17 For Up steep conveying industrial line With Top PVC 0

Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4



50





Z

10

5

3.5

50

·

·





 Super grip Belt Feature :



· Profile shape: Vee

· Profile size: A/13, B/17, C/22

· Reinforcement: None

· Color: Green, Red

· Compliancy: RoHS

· Durometer: 80A, 90A

· Material: Polyurethane, PVC Top Surface

· Special Feature: PVC Grip Top Surface

· Package Length: 30meter /roll

· Easily welded endless vee belt .
