جزئیات محصول:
پرداخت:
|
| hardness: | 85A | color: | green |
|---|---|---|---|
| stretching rate: | 1.5-3% | Surface: | rough |
| material: | PU | length: | 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll |
| برجسته: | ,,pu extruded belt |
||

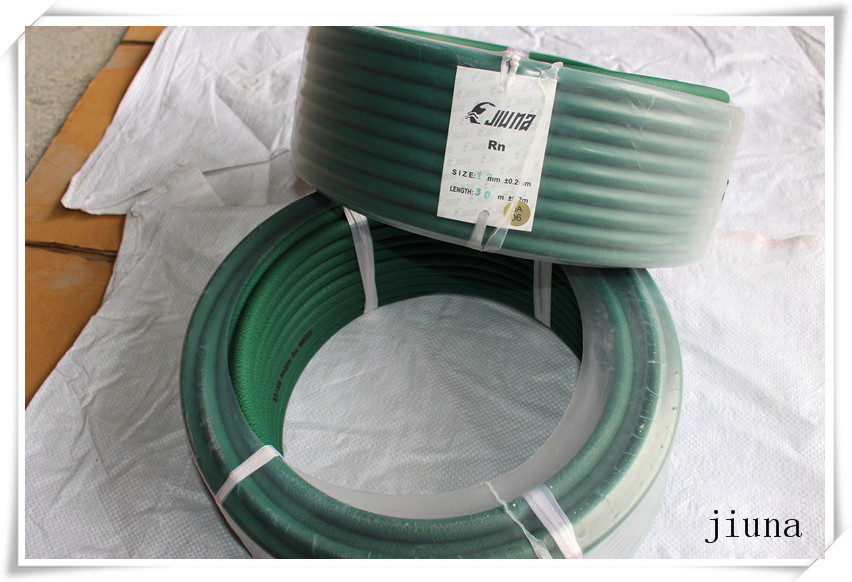

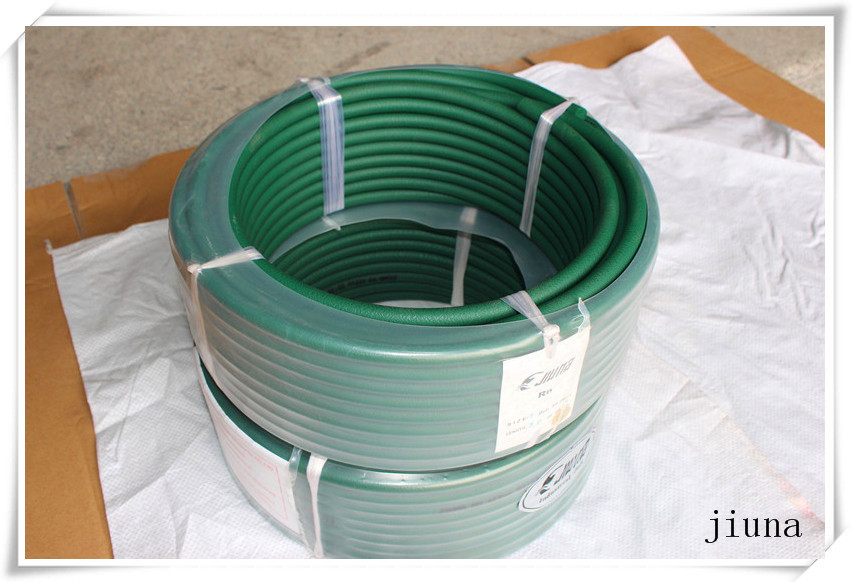

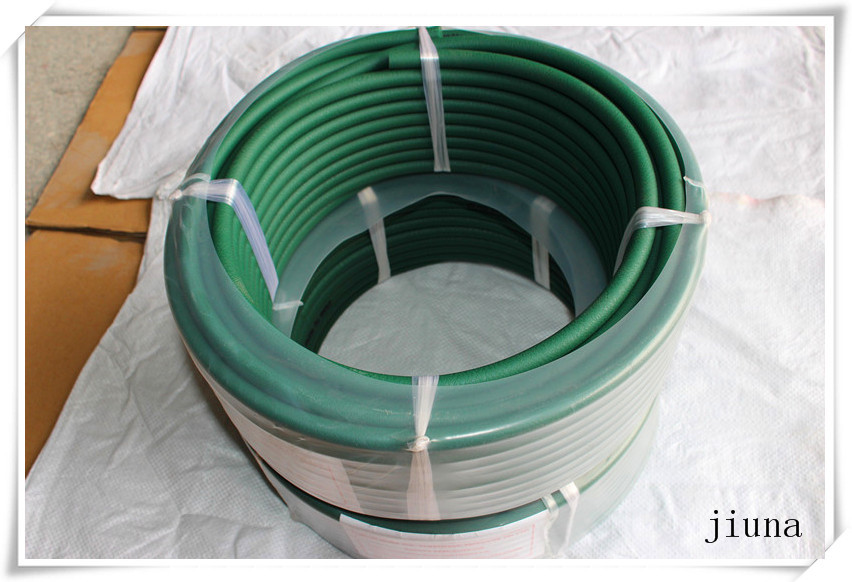

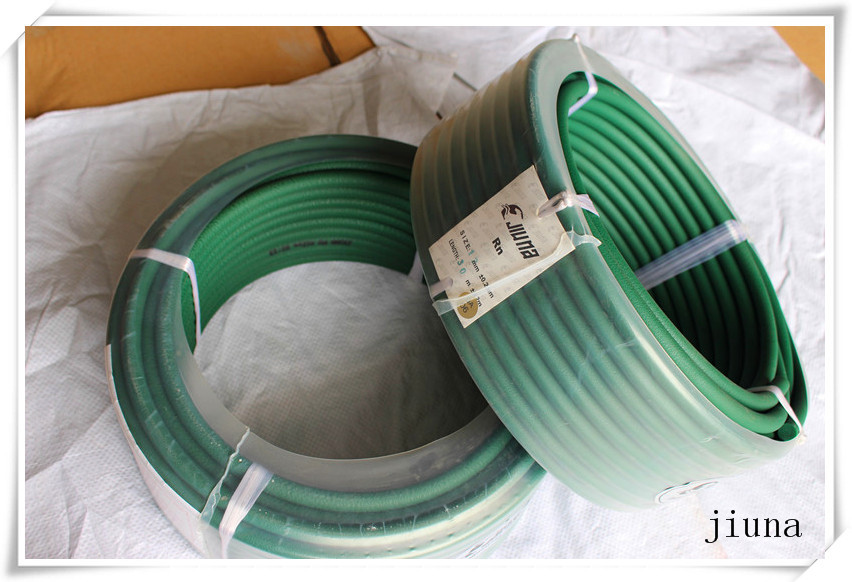

Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed
and other characteristics. Widely used in textile, packaging, printing,
machinery, electronic, glass, chemicals, ceramics and other industries,
especially in the ceramic industry, widely used in the facilities line the glaze,
polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
PU Round belt with reinforcement
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
