Weatherability Orange PU Round Belt Outstanding Abrasion Resistance

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

Weatherability Orange PU Round Belt Outstanding Abrasion Resistance

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

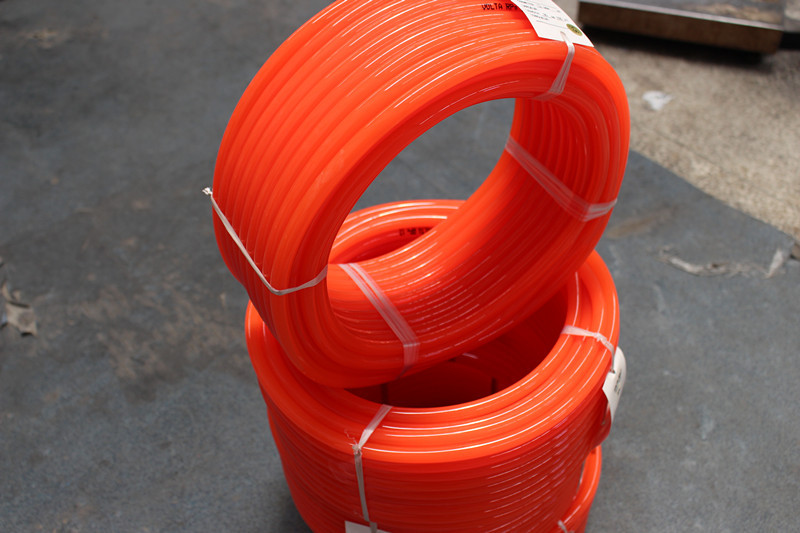

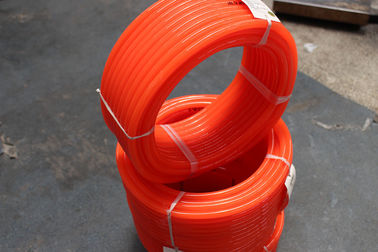

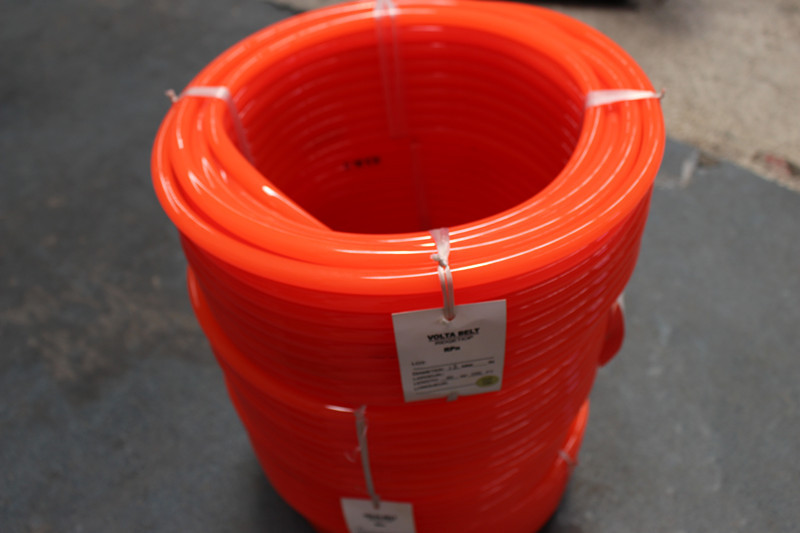

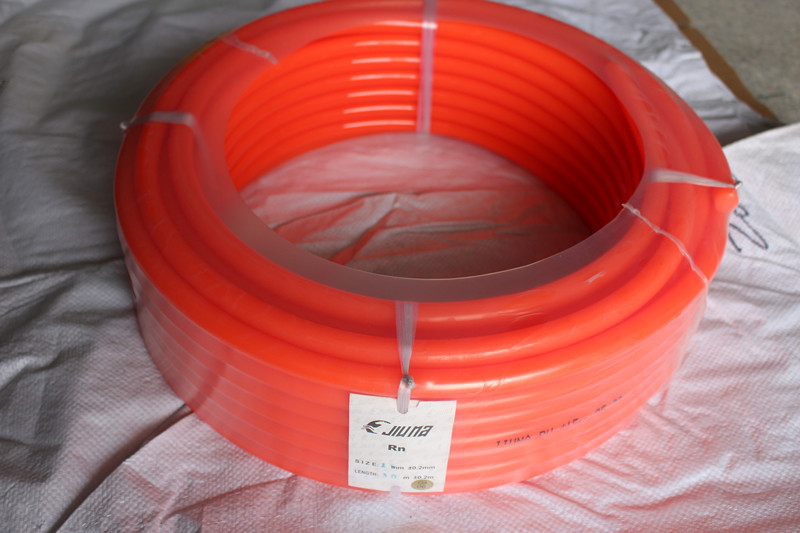

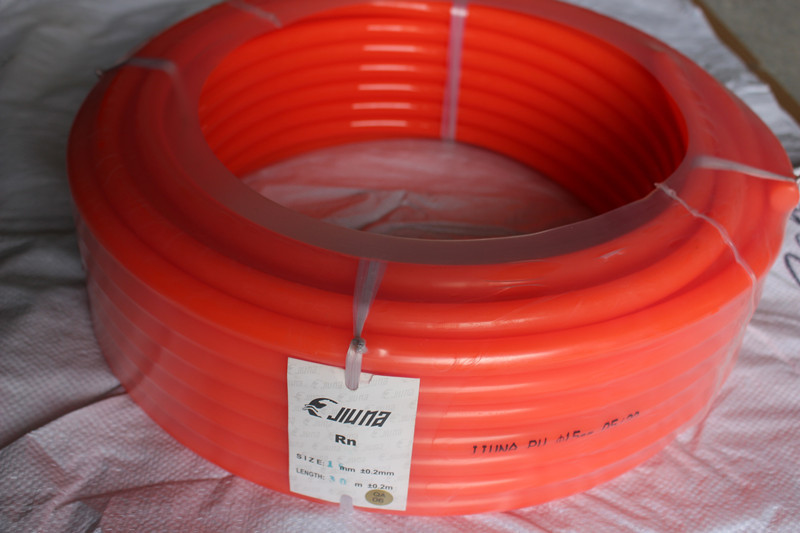

تصویر بزرگ :  Weatherability Orange PU Round Belt Outstanding Abrasion Resistance

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Diameter 15 mm
پرداخت:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 95.000 meters per Month
توضیحات محصول جزئیات
length: 30 m/roll Tensile Strength: 55N/mm2
Main function: Drive transmission color: orange
Model type: 3,4,5,6,8,10,12,15,18mm Surface: smooth
برجسته:

,

,

pu extruded belt

Weatherability Orange PU Round Belt Outstanding Abrasion Resistance



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

4mm 1.38 35 1.5-3% 1.2 2.7 85 200
5mm 1.57 40 1.5-3% 2.0 4.3 85 100
6mm 1.97 50 1.5-3% 3.2 7.0 85 100
7mm 2.17 55 1.5-3% 4.1 9.0 85 100
8mm 2.56 65 1.5-3% 5.0 11.0 85 100
9mm 2.95 75 1.5-3% 6.8 15.0 85 50
10mm 2.95 75 1.5-3% 7.7 17.0 85 50
12mm 3.94 100 1.5-3% 12.2 27.0 85 30
15mm 4.72 120 1.5-3% 17.7 39.0 85 30
18mm 5.71 145 1.5-3% 25.4 56.0 85 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 30

polyurethane round belt of  introduction:

We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Service commitment:

“Quality for keeping going ,Credit to win the world”



Weatherability Orange PU Round Belt Outstanding Abrasion Resistance 0Weatherability Orange PU Round Belt Outstanding Abrasion Resistance 1
