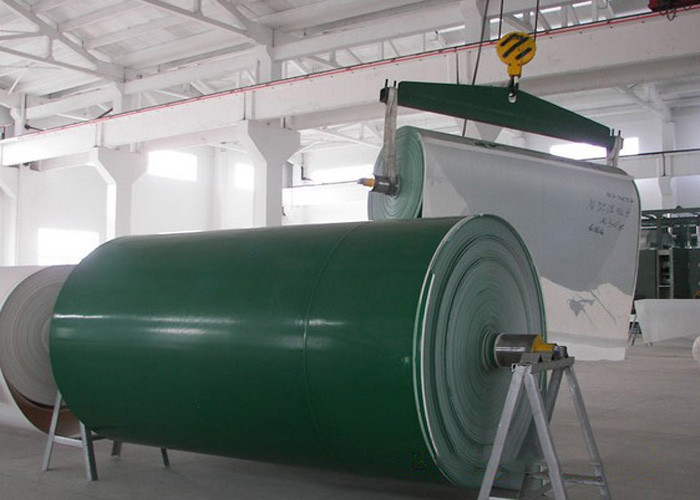

Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying

Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying
Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying

تصویر بزرگ :  Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying

جزئیات محصول:
Place of Origin: China
نام تجاری: Jiuna
گواهی: ROHS
Model Number: Width 2 meter x Length 100 meter
پرداخت:
Minimum Order Quantity: 100 square meters
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 10 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 6000 square meters per Month
توضیحات محصول جزئیات
برجسته:

Reinforced cord belt,polyurethane flat belt

,

polyurethane flat belt

Lightweight Flat PVC Conveyor Belt 80-300N/mm for Industrial Conveying



PVC conveyor belt type :

1. One layer fabric-one layer PVC,

2. Two layer fabric-two layer PVC,

3. Three layer fabric-three layer PVC,

4. Four layer fabric-four layer PVC .



PVC Conveyor belt Features:

1.  Material: PVC

2.  Tensile strength: 80-300N/mm

3.  Temperature range: -10°C~+90°C

4.   Low stretch;

5.   Low maintenance;

6.   Anti-static;

7.   Flexible;

8.   Lightweight;

9.   Impervious to moisture, acids, oils, gases, sunlight;

10.  Excellent fastener holding;

11.  Excellent resistance to tearing, peeling and impact;

12.  Endless belt splicing;

13.  Special wear resistant edge design;




PVC conveyor belt Application:

1. Conveying and production assembly lines in the areas,

2. Foodstuffs, electronics industrial transport.

3. Pharmaceuticals, drinks and paper making industrial conveyor ,ect.



Technical Parameters:

Material

Thicknees

(mm)

Weight

kg/㎡

Color

Surface

patten

Belt  composition

Temperature

resistance℃

Max.tensile

N/㎝

Antistatic

PVC

2.0

2.3

white

smooth

Two layers of fabric,

-5~+80

8



PVC

2.0

2.3

Apple Green

smooth

Two layers of fabric,

-10~+80

10



PVC

2.0

2.3

Dark Green

smooth

Two layers of fabric,

-10~+80

10



PVC

2.0

2.3

Black

smooth

Two layers of fabric,

-10~+80

80



PVC

2.5

2.3

Dark Green

Semisphere

Two layers of fabric,

-10~+80

8

PVC

2.8

3.5

white

smooth

Two layers of fabric,

-10~+80

10



PVC

2.8

3

Apple Green

smooth

Two layers of fabric,

-10~+80

16

PVC

2.8

3

Dark Green

smooth

Two layers of fabric,

-10~+80

16

PVC

4.2

5.4

Apple Green

smooth

Three layers of fabric,

-5~+80

16



PVC

4.8

4.6

Gray

Smooth/rough

Three layers of fabric,

-10~+80

250



PVC

5.3

4.6

Apple Green /Dark Green

Fine textured

Three layers of fabric,

-10~+80

200



PVC

6.0

4.5

Dark Green

Coarse Textured

Three layers of fabric,

-10~+80

10

PVC

5.4

3.6

Dark Green/white

Bottons

Three layers of fabric,

-10~+80

16

PVC

7.0

8

Dark Green

semisphere

Three layers of fabric,

-10~+80

50

PVC

9.0

10.5

Dark Green

semisphere

Three layers of fabric,

-10~+80

80

PVC

9.0

10.3

Dark Green

basketweave

Three layers of fabric,

-10~+80

70



PVC

10.2

8.2

Gray

Rhombus

Four layers of fabric,

-20~+90

13

PVC

9.2

7.65

Dark Green

Basketweave

Three layers of fabric,

-10~+70

15

PVC

12.0

8.6

Dark Green

Tooth saw

Four layers of fabric,

-5~+60

60

PVC

0.7

0.7

White

smooth

One layers of fabric

-30~+100

2



PVC

1.2

1.4

White

smooth

One layers of fabric

-15~+100

8

PVC

1.6

1.4

Gray

sailcloth

One layers of fabric

-10~+90

-





Service commitment:

“Quality for keeping going ,Credit to win the world”
