Green High Tensile Polyurethane Round Belt For Industrial

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

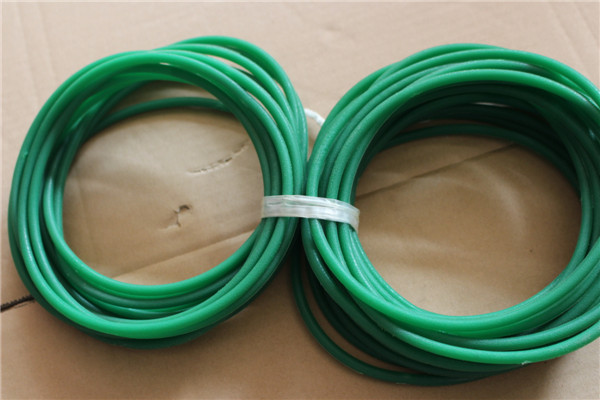

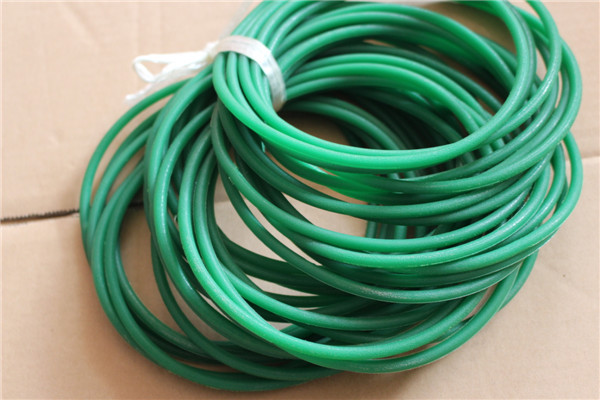

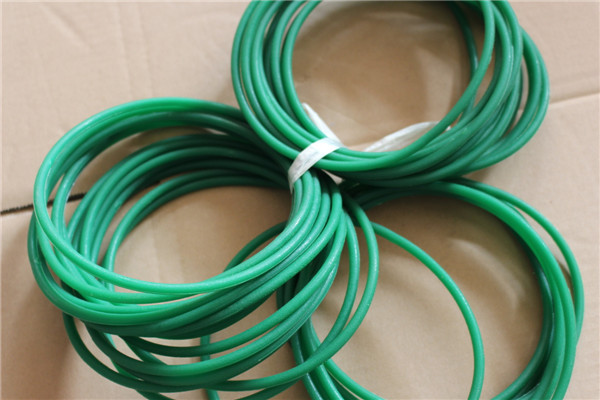

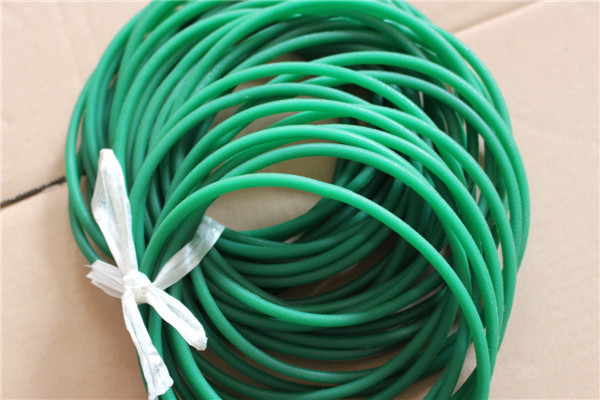

Green High Tensile Polyurethane Round Belt For Industrial

Green High Tensile   Polyurethane Round Belt  For Industrial
Green High Tensile   Polyurethane Round Belt  For Industrial Green High Tensile   Polyurethane Round Belt  For Industrial Green High Tensile   Polyurethane Round Belt  For Industrial Green High Tensile   Polyurethane Round Belt  For Industrial

تصویر بزرگ :  Green High Tensile Polyurethane Round Belt For Industrial

جزئیات محصول:
Place of Origin: China
نام تجاری: jiuna
گواهی: ROHS
Model Number: Diameter 3mm~20mm
پرداخت:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
توضیحات محصول جزئیات
color: green or as your require material: PU
longth: 300m/roll 200m/roll 100m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg stretching rate: 1.5%-3%
برجسته:

pu extruded belt

,

green round belt

Tensile Strength Polyurethane Round Belt / PU Round Belt for lndustrial

Detailed Product Description:

PU Cord Belt Application :

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Transmission purposes of textile machines, packaging machines, printing presses, food machinery, industrial and paper equipments. Cut round belts can be joined as the endless belts as required according to the drive wheel distance and pulley size.



Green High Tensile   Polyurethane Round Belt  For Industrial 0
