جزئیات محصول:
پرداخت:
|
| color: | any color | material: | PU |
|---|---|---|---|
| hardness: | 78A-98A | heat-resistant moderate temperature: | -50 ℃ to + 85 ℃ |
| stretching rate: | 1.5-3% | tensile rate: | 0.7-69 Lbs |
| برجسته: | ,,green round belt |
||

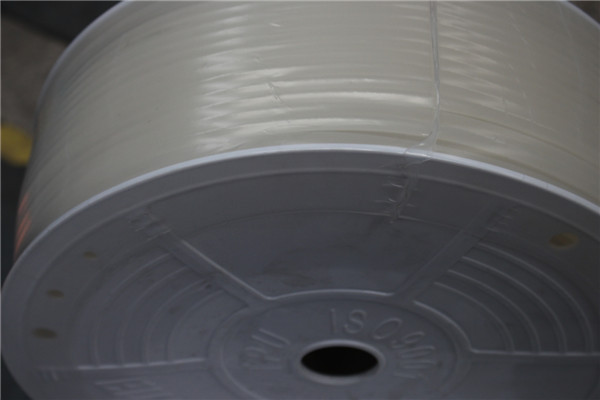

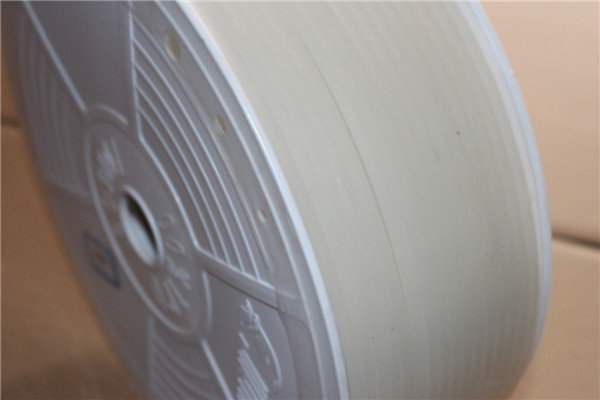

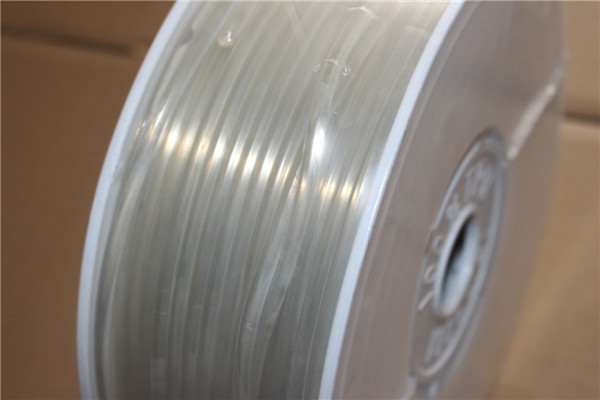

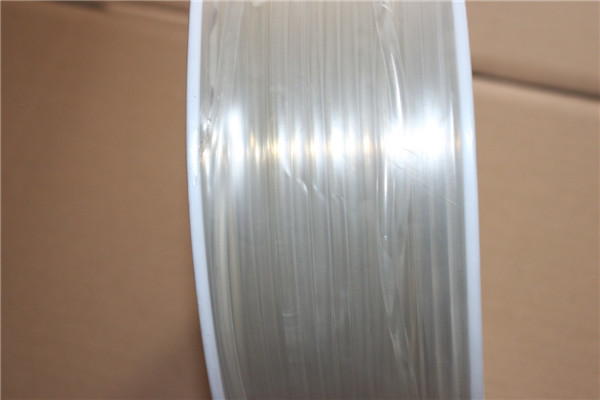

Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 2 | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3 | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4 | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5 | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6 | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7 | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8 | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9 | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10 | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12 | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15 | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18 | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20 | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 |
30 |
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
.
