3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable

چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
چین Wuxi Jiunai Polyurethane Products Co., Ltd گواهینامه ها
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

چت IM آنلاین در حال حاضر

3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable

3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable
3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable 3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable 3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable 3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable

تصویر بزرگ :  3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable

جزئیات محصول:
Place of Origin: china
نام تجاری: JIUNA
گواهی: ROHS
Model Number: Dia3m-12mm
پرداخت:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 96.000 meters per Month
توضیحات محصول جزئیات
material: pu hardness: 85A
color: green orange export port: shanghai
longth: 200m/roll radius of gyration: 20mm-160mm
برجسته:

,

,

green round belt

3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable



Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set



Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



We offer a complete line of Polyester and Polyurethane Round belts for use in transmission industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

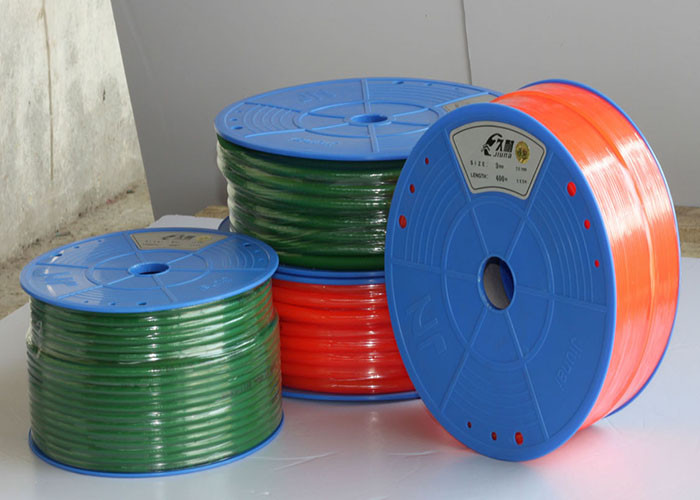

3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable 0

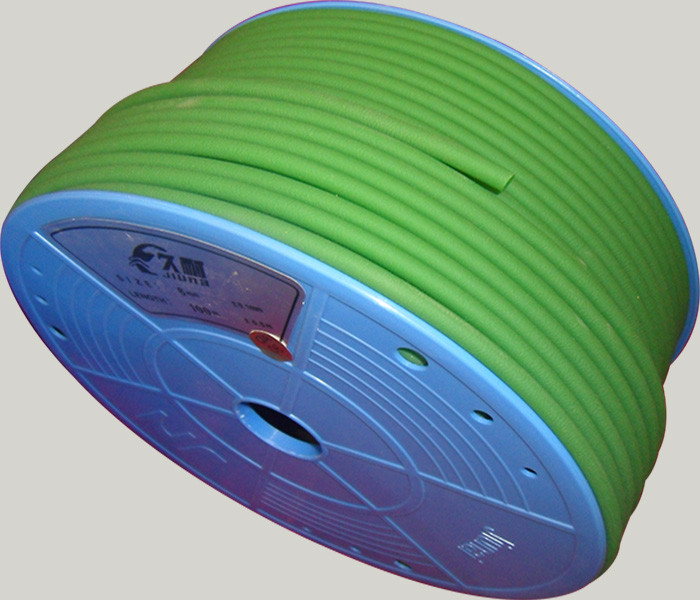

3m - 12mm Round rubber conveyor Belt / industrial belt Recyclable 1
