PU tubing Properties:
1. resistance to chemicals,water ,fuel, oil, fungus.
2. Hardness range from 45 shore A to 98 shore A ,
3. Can absorb shock and reduce the pipe friction.
4. Wide range of working temperature and pressure.
PU tubing Usage:
1 .Industrial Pneumatic tools, Processing control with potential
2. Gas pipeline, Auto assembly line, Instrument & equipment, Laboratory,
3. Water and other fluid and non-corrosive oil.
4. Accessories(such as handle)
5. Metal and electronic products protective coat
6. Lube Transmission line, Robotics, Non-corrosive chemical transmission system, Water transmission & gardening .
|
PART NO. |
O.D./ I.D. (mm) |
BURST PRESSURE (kg./cm2) |
WORKING PRESSURE (kg./cm2) |
BENDING RADIUS (mm) |
STANDARD LENGTH (m) |
|
PUT-01 |
4 x 2 |
30 |
10 |
10 |
100 |
|
PUT-02 |
6 x 4 |
30 |
10 |
16 |
100 |
|
PUT-03 |
8 x 5 |
30 |
10 |
22 |
100 |
|
PUT-04 |
8 x 5.5 |
30 |
10 |
21 |
100 |
|
PUT-05 |
8 x 6 |
30 |
10 |
20 |
100 |
|
PUT-06 |
10 x 6.5 |
30 |
10 |
23 |
100 |
|
PUT-07 |
10X7 |
30 |
10 |
25 |
100 |
|
PUT-08 |
12 x 8 |
30 |
10 |
35 |
100 |
|
PUT-09 |
12 x 9 |
30 |
10 |
40 |
100 |
|
PUT-10 |
12 x 10 |
30 |
10 |
45 |
100 |
Products Introduction:
polyurethane tubing is resistant to chemicals, water, fuel, oil and fungus.

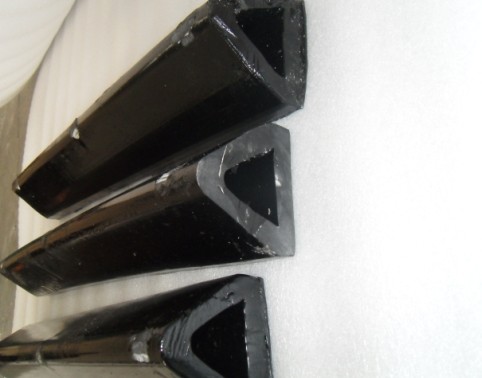

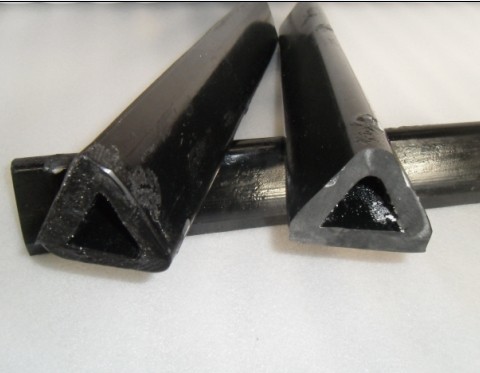

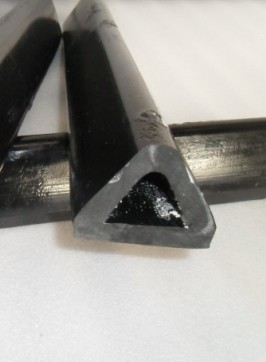

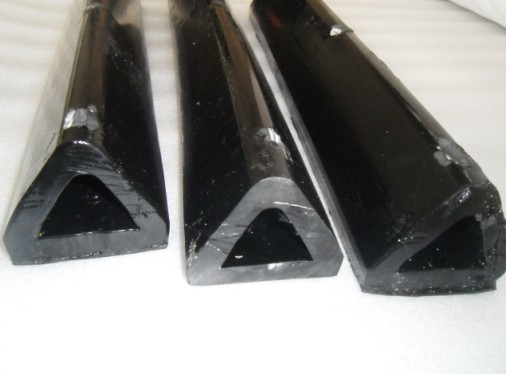

Any Non-standard Industrial Injection Molding tube can be according to your drawing to costom.
Service commitment:
committing itself to providing extensive customers with quality services ,we still can Provide Technical Product support for customers.
We have been adhering to the business philosophy of “Quality for keeping going ,Credit to win the world”
